140054 | EATON

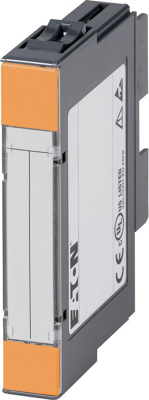

Relay output module for XI/ON, (W x H x D) 12.9 x 74.1 x 55.4 mm, 140054
Order No.: 82P1085
EAN: 7640130120235
MPN:
140054
Unit Price (€ / pc.)
84.0735 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
84.07 € *
Price list
Quantity
Price per unit*
1 pcs.
84.0735 €
5 pcs.
80.4321 €
10 pcs.
77.0882 €
*incl. VAT plus shipping costs
Subject to prior sale
Relay module, 140054, EATON
The digital output module XI/ON operates at 24 V DC and features two relay outputs with changeover contact, designated as XN-2DO-R-CO.
Technical specifications
| Control Voltage | 24 VDC | |
| Version | relay output module | |
| Number of outputs | 2 | |
| Switching Voltage (DC) | 30 V | |
| Rated current | 5 A | |
| Height | 74.1 mm | |
| Depth | 55.4 mm | |
| Switching Voltage (AC) | 230 V | |
| Width | 12.9 mm | |
| Contact type | 2 Form C (NO/NC) | |
| Assembly | DIN rail |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
