266139 | EATON
Position sensor, 1 Form A (N/O) + 1 Form B (N/C), spring rod, cage clamp, IP66/IP67, 266139
Order No.: 82P0754
EAN: 4015082661397
MPN:
266139
LSM-11S/S
Unit Price (€ / pc.)
46.9098 € *
Available: 2 pcs.
Total Price:
46.91 € *
Price list
Quantity
Price per unit*
1 pcs.
46.9098 €
3 pcs.
44.8868 €
5 pcs.
43.0185 €
*incl. VAT plus shipping costs
Subject to prior sale

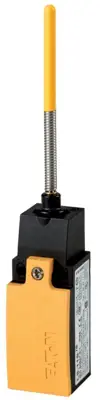

Position switch, 266139, EATON
The device features a position switch, specifically the LS(M)-… model, equipped with a spring-rod actuator. It is a complete unit comprising one normally open (N/O) and one normally closed (NC) snap-action contact. The unit is yellow, constructed from metal, and utilizes a cage clamp. It operates effectively within a temperature range of -25 to +70 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cage clamp | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP66/IP67 | |
| Actuator | spring rod |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
