199185 | EATON
Motor protection switch, 3 pole, 4 to 6.3 A, 2.2 kW, 6.3 A, screw connection/push-in, 199185
Order No.: 82P0666
EAN: 4015081972692
MPN:
199185
PKZM0-6,3-SPI16
Unit Price (€ / pc.)
87.6197 € *
Available: 1 pcs.
Total Price:
87.62 € *
Price list
Quantity
Price per unit*
1 pcs.
87.6197 €
3 pcs.
85.2159 €
5 pcs.
82.9073 €
*incl. VAT plus shipping costs
Subject to prior sale

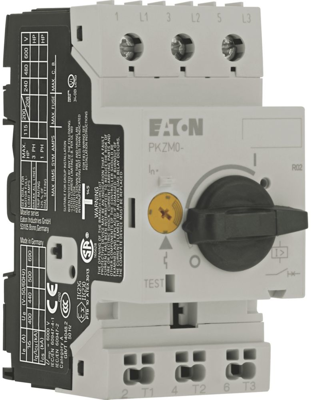

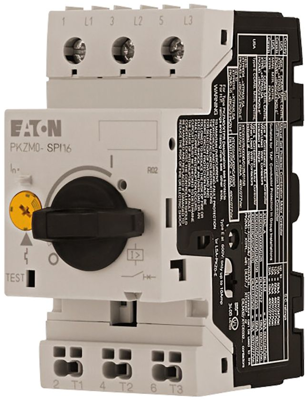

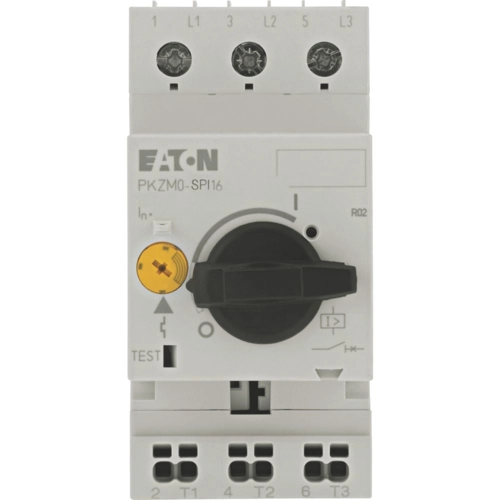

Motor-protective circuit-breaker, 199185, EATON
A motor-protective circuit breaker rated at 2.2 kW, with a current range of 4 to 6.3 A, featuring screw terminals on the feed side and push-in terminals on the output side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Connection | screw connection/push-in | |
| Rated current | 6.3 A | |
| Version | motor protection switch | |
| Pin number | 3 pole | |
| Engine power | 2.2 kW | |
| Release | 4 to 6.3 A | |
| Actuator | rotary knob | |
| Network frequency | 50/60 Hz | |
| Rated voltage | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
