121734 | EATON
Motor protection switch, 3 pole, 8 to 32 A, 15 kW, 32 A, screw connection, 121734
Order No.: 82P0688
EAN: 4015081195442
MPN:
121734
PKE32/XTU-32
Unit Price (€ / pc.)
164.9459 € *
Standard delivery time from the manufacturer is: On Request

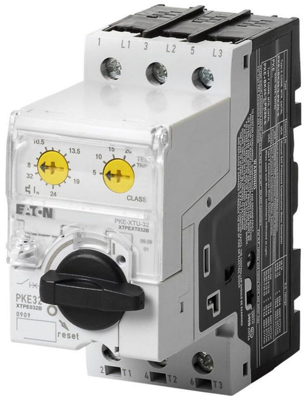

Motor-protective circuit-breaker, 121734, EATON
This is a motor-protective circuit breaker featuring a complete device equipped with a standard knob. It operates electronically within a range of 8 to 32 A, with a maximum capacity of 32 A. The unit includes an overload release mechanism and is designed with screw terminals for secure connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Network frequency | 50/60 Hz | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Release | 8 to 32 A | |
| Rated voltage | 690 V | |
| Engine power | 15 kW | |
| Actuator | rotary knob | |
| Version | motor protection switch | |
| Pin number | 3 pole | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead titanium zirconium oxide, Diboron trioxide, Lead monoxide ]lead(II) oxide], Lead |
| Date of RoHS guidelines | 3/31/15 |
