121733 | EATON
Motor protection switch, 3 pole, 3 to 12 A, 5.5 kW, 12 A, screw connection, 121733
Order No.: 82P0687
EAN: 4015081195435
MPN:
121733
PKE12/XTU-12
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
134.8746 € *
Standard delivery time from the manufacturer is: On Request

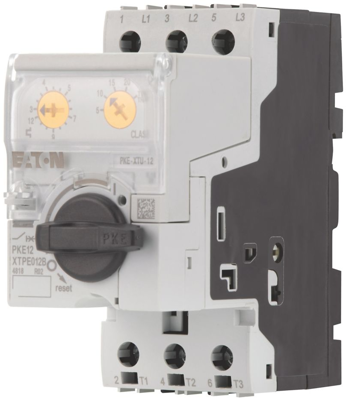

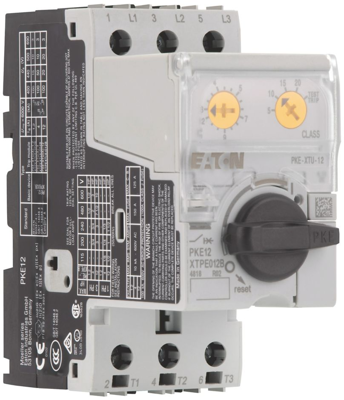

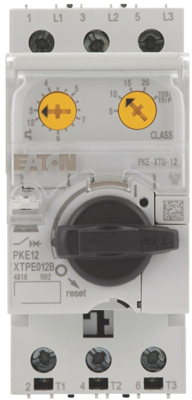

Motor-protective circuit-breaker, 121733, EATON
A motor-protective circuit breaker, featuring a complete unit with a standard knob, operates electronically within a range of 3 to 12 A and includes an overload release mechanism.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | motor protection switch | |
| Pin number | 3 pole | |
| Release | 3 to 12 A | |
| Engine power | 5.5 kW | |
| Rated current | 12 A | |
| Rated voltage | 690 V | |
| Actuator | rotary knob | |
| Network frequency | 50/60 Hz | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead titanium zirconium oxide, Diboron trioxide, Lead monoxide ]lead(II) oxide], Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
