046989 | EATON

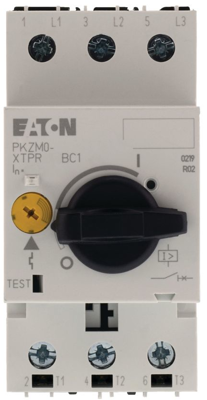

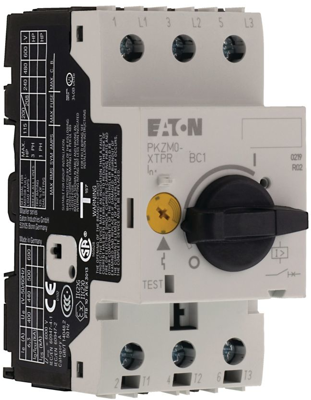

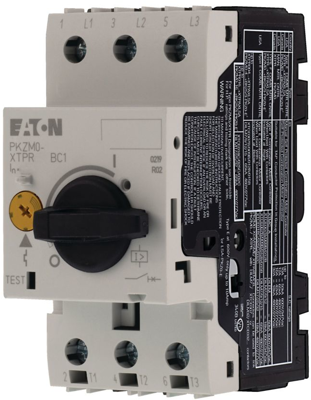

Motor protection switch, 3 pole, 20 to 25 A, 12.5 kW, 25 A, screw connection, 046989
Order No.: 82P0665
EAN: 4015080469896
MPN:
046989
PKZM0-25
Unit Price (€ / pc.)
129.7219 € *
Standard delivery time from the manufacturer is: On Request
Motor-protective circuit-breaker, 046989, EATON
A motor protection circuit breaker rated at 12.5 kW, with a current range of 20 to 25 A, featuring screw terminals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |
| Assembly | DIN rail | |
| Rated voltage | 690 V | |
| Network frequency | 50/60 Hz | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Engine power | 12.5 kW | |
| Actuator | rotary knob | |
| Pin number | 3 pole | |
| Version | motor protection switch | |
| Release | 20 to 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts, Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
