046938 | EATON
Motor protection switch, 3 pole, 10 to 16 A, 7.5 kW, 16 A, screw connection, 046938
Order No.: 82P0681
EAN: 4015080469384
MPN:
046938
PKZM0-16
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
103.9584 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
103.96 € *
Price list
Quantity
Price per unit*
1 pcs.
103.9584 €
3 pcs.
101.0786 €
5 pcs.
98.3535 €
*incl. VAT plus shipping costs
Subject to prior sale

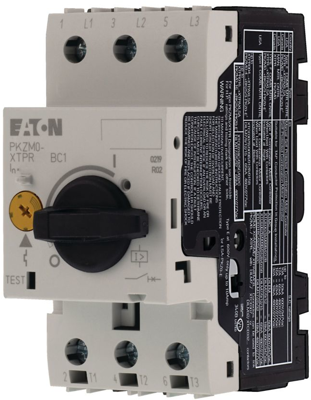

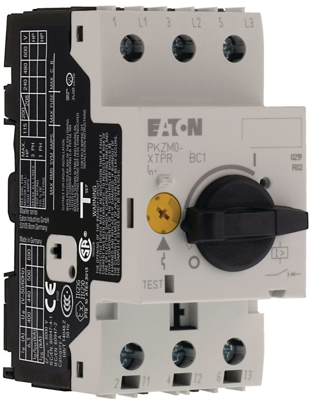

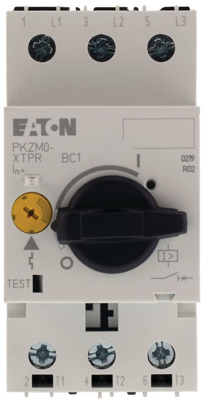

Motor-protective circuit-breaker, 046938, EATON
A motor protection circuit breaker rated at 7.5 kW, with a current range of 10 to 16 A, featuring screw terminal connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | motor protection switch | |
| Pin number | 3 pole | |
| Release | 10 to 16 A | |
| Engine power | 7.5 kW | |
| Rated current | 16 A | |
| Rated voltage | 690 V | |
| Actuator | rotary knob | |
| Network frequency | 50/60 Hz | |
| Connection | screw connection | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
