229748 | EATON
Emergency stop, pull release, unlit, 1 Form B (N/C) + 1 Form A (N/O), 229748
Order No.: 82P0192
EAN: 4015082297480
MPN:
229748
FAK-R/V/KC11/IY
Unit Price (€ / pc.)
103.0897 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
103.09 € *
Price list
Quantity
Price per unit*
1 pcs.
103.0897 €
3 pcs.
100.2337 €
5 pcs.
97.5443 €
*incl. VAT plus shipping costs
Subject to prior sale

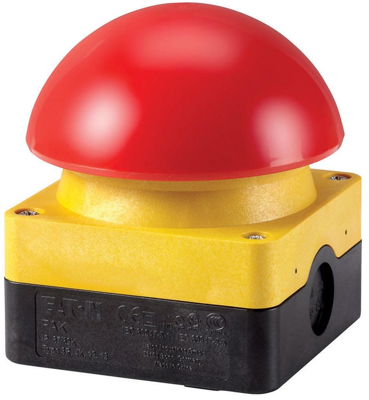

Palm switch, 229748, EATON
A palm switch featuring one normally open and one normally closed contact, designed for emergency shutdown, suitable for surface mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of mounting | surface mounting | |
| Collar shape of the front frame | round | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K | |
| Contact function | latching | |
| Latching switching function | 1 Form B (N/C) + 1 Form A (N/O) | |
| Height | 85 mm | |
| Resetting | pull release | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Dodecamethylcyclohexasiloxane, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxane, Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| Date of RoHS guidelines | 3/31/15 |
