216523 | EATON
Surface mount housing, 1 emergency stop/emergency off button red with key, 1 Form B (N/C) + 1 Form A (N/O), 216523
Unit Price (€ / pc.)
94.4979 € *
Available: 1 pcs.
Total Price:
94.50 € *
Price list
Quantity
Price per unit*
1 pcs.
94.4979 €
3 pcs.
91.8918 €
5 pcs.
89.4166 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop/emergency off button, 216523, EATON

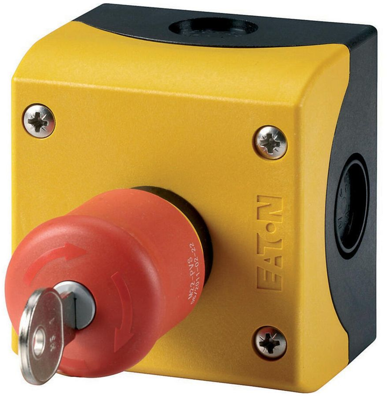

The housing features a mushroom-shaped emergency stop button with a diameter of 38 mm. It is non-illuminated and designed for key release, incorporating one normally closed (NC) and one normally open (N/O) contact. The connection is made via screws, and it is in red and yellow color, suitable for a single location.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/red | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K | |
| Latching switching function | 1 Form B (N/C) + 1 Form A (N/O) | |
| Shell size | 115 x 72 x 80 mm | |
| Version | 1 emergency stop/emergency off button red with key |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
