216522 | EATON
Surface mount housing, 1 pushbutton green, 1 Form B (N/C) + 1 Form A (N/O), groping, 216522
Unit Price (€ / pc.)
35.8904 € *
Available: 2 pcs.
Total Price:
35.89 € *
Price list
Quantity
Price per unit*
1 pcs.
35.8904 €
3 pcs.
34.3315 €
5 pcs.
32.9154 €
*incl. VAT plus shipping costs
Subject to prior sale

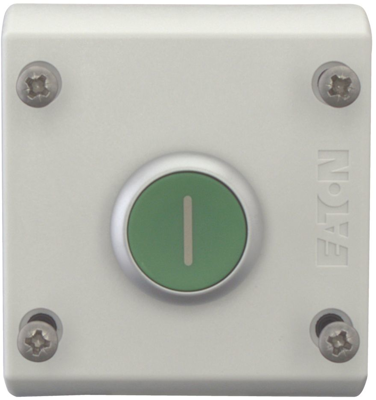

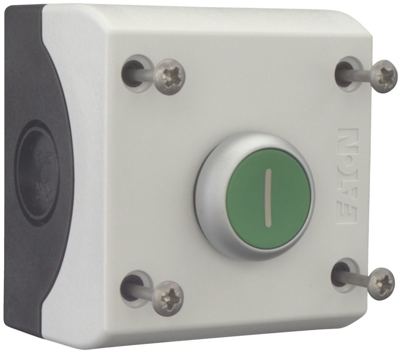

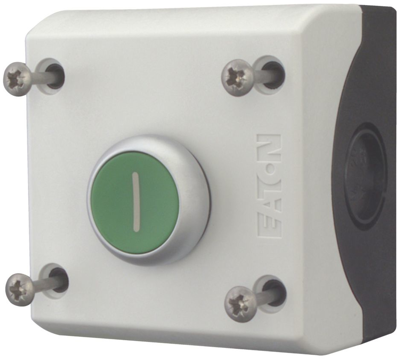

Pushbutton in the enclosure, 216522, EATON
The pushbutton, RMQ-Titan model, features a momentary design with one normally closed (NC) and one normally open (N/O) contact. It is green in color and includes an inscribed bezel made of titanium.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1 pushbutton green | |
| Latching switching function | 1 Form B (N/C) + 1 Form A (N/O) | |
| Contact function | groping | |
| Shell size | 70 x 70 x 72 mm | |
| Colour | gray | |
| Degree of protection (IP) | IP66/IP67/IP69/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
| Date of RoHS guidelines | 3/31/15 |
