276429 | EATON
Auxiliary switch, 4 pole, 2 Form A (N/O) + 2 Form B (N/C), screw connection, 276429
Unit Price (€ / pc.)
36.8662 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
36.87 € *
Price list
Quantity
Price per unit*
1 pcs.
36.8662 €
3 pcs.
35.1050 €
5 pcs.
33.0344 €
10 pcs.
31.1661 €
*incl. VAT plus shipping costs
Subject to prior sale

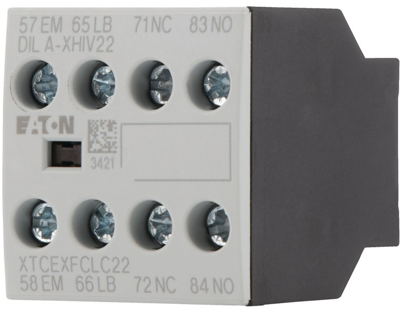

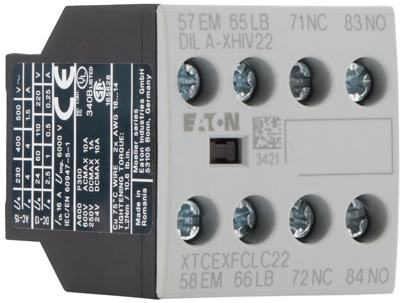

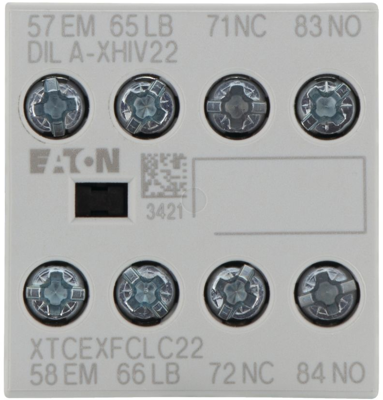

Auxiliary switch module, 276429, EATON
The auxiliary contact module features four poles. It includes one normally open contact, one normally open early break contact, one normally closed contact, and one normally closed late break contact. The module is designed for front mounting and utilizes screw terminals for connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP20 | |
| Assembly | front mounting | |
| Connection | screw connection | |
| rated voltage (AC) | 500 V | |
| Version | auxiliary switch | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
