276379 | EATON
Auxiliary contactor, 4 pole, 3 Form A (N/O) + 1 Form B (N/C), coil 24 VDC, screw connection, 276379
Unit Price (€ / pc.)
53.1930 € *
Available: 1 pcs.
Total Price:
53.19 € *
Price list
Quantity
Price per unit*
1 pcs.
53.1930 €
3 pcs.
50.8963 €
5 pcs.
48.7781 €
*incl. VAT plus shipping costs
Subject to prior sale

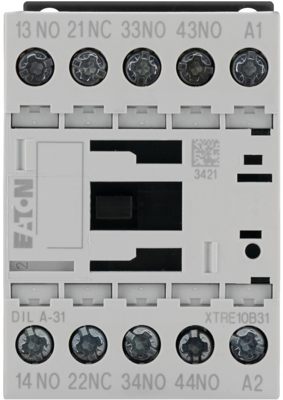

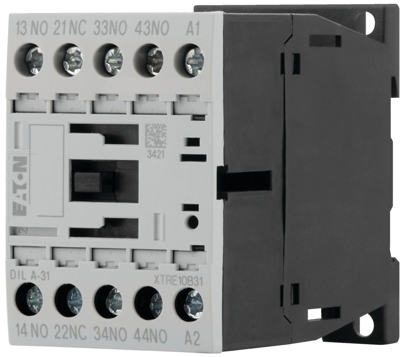

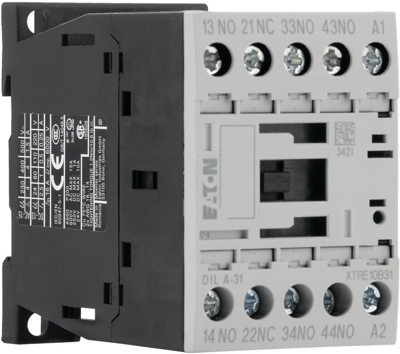

Contactor relay, 276379, EATON
A 24 V DC contactor relay featuring three normally open (N/O) contacts and one normally closed (NC) contact, equipped with screw terminals for DC operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail/screw | |
| Latching switching function | 3 Form A (N/O) + 1 Form B (N/C) | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 24 VDC | |
| Pin number | 4 pole | |
| Version | auxiliary contactor | |
| rated voltage (AC) | 690 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
