276372 | EATON
Auxiliary contactor, 3 Form A (N/O) + 1 Form B (N/C), coil 230 VAC, screw connection, 276372
Unit Price (€ / pc.)
44.9106 € *
Available: 1 pcs.
Total Price:
44.91 € *
Price list
Quantity
Price per unit*
1 pcs.
44.9106 €
3 pcs.
42.9709 €
5 pcs.
41.1859 €
*incl. VAT plus shipping costs
Subject to prior sale

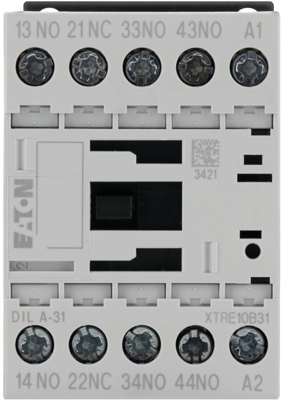

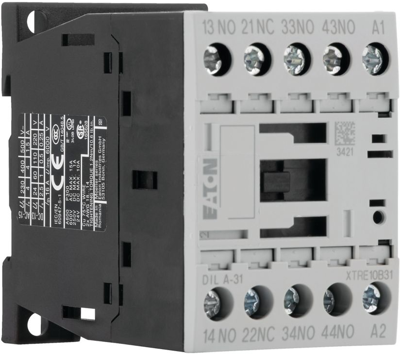

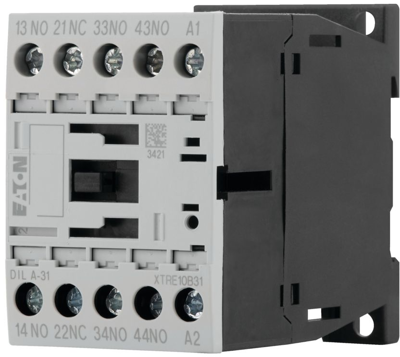

Contactor relay, 276372, EATON
The contactor relay operates at 230 V with a frequency of 50/60 Hz, featuring three normally open contacts and one normally closed contact, equipped with screw terminals for AC applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | auxiliary contactor | |
| Latching switching function | 3 Form A (N/O) + 1 Form B (N/C) | |
| rated voltage (AC) | 690 V | |
| Control Voltage | 230 VAC | |
| Connection | screw connection | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
