276364 | EATON

Auxiliary contactor, 3 Form A (N/O) + 1 Form B (N/C), coil 230-240 VAC, screw connection, 276364

Order No.: 82P0328
EAN: 4015082763640
MPN:
276364
DILA-31(230V50HZ,240V60HZ)
Series: DILA

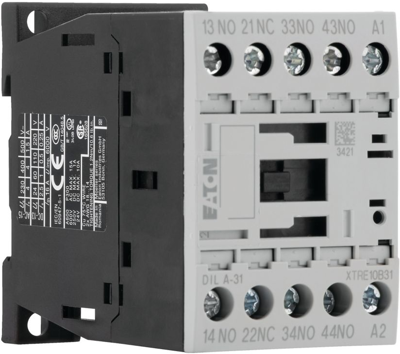

276364 EATON Contactors Image 1

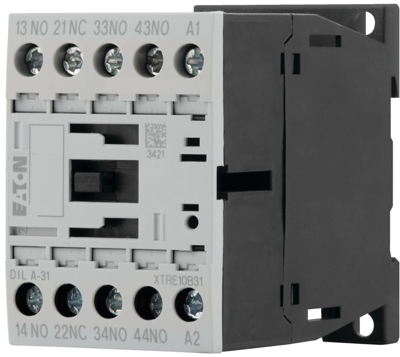

276364 EATON Contactors Image 2

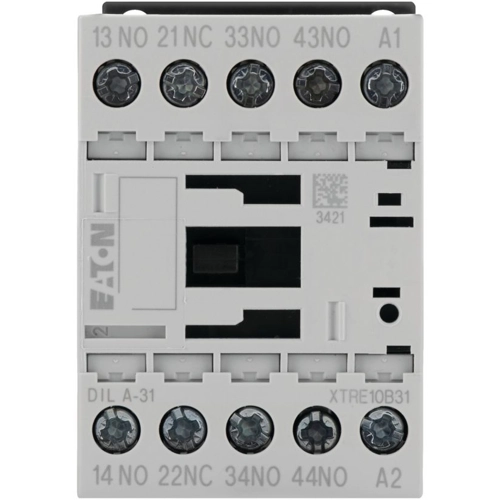

276364 EATON Contactors Image 3
Image may differ
Unit Price (€ / pc.)
44.9106 € *
Available: 1 pcs.
Total Price:
44.91 € *
Price list
Quantity
Price per unit*
1 pcs.
44.9106 €
3 pcs.
42.9709 €
5 pcs.
41.1859 €
*incl. VAT plus shipping costs
Subject to prior sale

Contactor relay, 276364, EATON

The contactor relay operates at 230 V with a frequency of 50 Hz and at 240 V with a frequency of 60 Hz. It features three normally open contacts and one normally closed contact, equipped with screw terminals for AC applications.

Technical specifications
Filter Property Value
rated voltage (AC) 690 V
Degree of protection (IP) IP20
Assembly DIN rail/screw
Control Voltage 230-240 VAC
Version auxiliary contactor
Connection screw connection
Latching switching function 3 Form A (N/O) + 1 Form B (N/C)
Logistics
Property Value
Country of origin DE
Customs tariff number 85364900
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
