199328 | EATON
Auxiliary switch, 3.5 A, 250 VDC, 1 Form A (N/O) + 1 Form B (N/C), push-in, 199328
Order No.: 82P0695
EAN: 4015081974122
MPN:
199328
NHI11-PKZ0-PI
Unit Price (€ / pc.)
16.7909 € *
Available: 5 pcs.
Total Price:
16.79 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7909 €
3 pcs.
15.9579 €
5 pcs.
15.2201 €
10 pcs.
14.3276 €
*incl. VAT plus shipping costs
Subject to prior sale

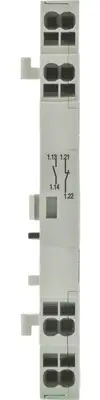

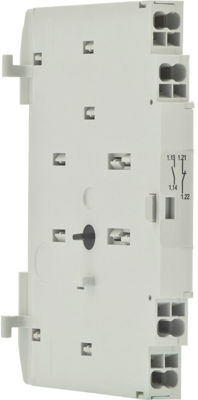

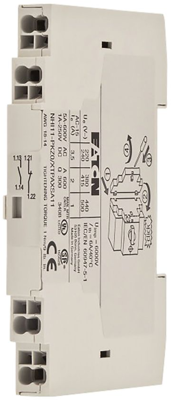

Auxiliary contact, 199328, EATON
The accessory features a standard auxiliary contact with one normally open (N/O) and one normally closed (N/C) configuration, designed for side mounting and equipped with push-in terminals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | auxiliary switch | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Rated current | 3.5 A | |
| Rated Voltage | 250 VDC | |
| rated voltage (AC) | 500 V | |
| Connection | push-in | |
| Assembly | side mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
