199326 | EATON

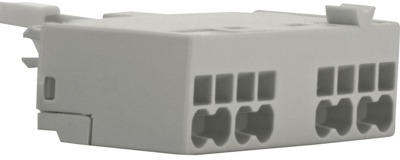

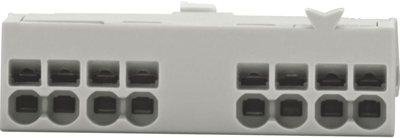

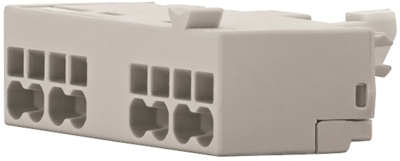

Name: Auxiliary switch, 0.5 A, 250 VDC, 1 Form A (N/O) + 1 Form B (N/C), push-in, 199326
Brand: EATON
SKU: 82P0693
Availability: InStock

Auxiliary switch, 0.5 A, 250 VDC, 1 Form A (N/O) + 1 Form B (N/C), push-in, 199326

Order No.: 82P0693

EAN: 4015081974108

MPN:

199326

NHI-B-11-PKZ0-PI

Image may differ

Key Specification:

Version auxiliary switch

Latching switching function 1 Form A (N/O) + 1 Form B (N/C)

Rated current 0.5 A

Download Datasheet Technical specifications

No longer available from manufacturer

Unit Price (€ / pc.)

15.0654 € *

Available: 5 pcs.

Total Price:

15.07 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Auxiliary contact, 199326, EATON

Standard auxiliary contact features one normally open (N/O) and one normally closed (NC) terminal, can be installed at the front, and utilizes push-in terminals.

Technical specifications

Filter	Property	Value
	Version	auxiliary switch
	Latching switching function	1 Form A (N/O) + 1 Form B (N/C)
	Rated current	0.5 A
	Rated Voltage	250 VDC
	rated voltage (AC)	440 V
	Connection	push-in
	Assembly	front mounting
