051643 | EATON
Power contactor, 3 pole, 22 A, 1 Form A (N/O), coil 24 VDC, screw connection, 051643
Order No.: 82P0439
EAN: 4015080516439
MPN:
051643
DILEEM-10-G(24VDC)
Unit Price (€ / pc.)
55.0137 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
55.01 € *
Price list
Quantity
Price per unit*
1 pcs.
55.0137 €
3 pcs.
52.6337 €
5 pcs.
50.4560 €
*incl. VAT plus shipping costs
Subject to prior sale

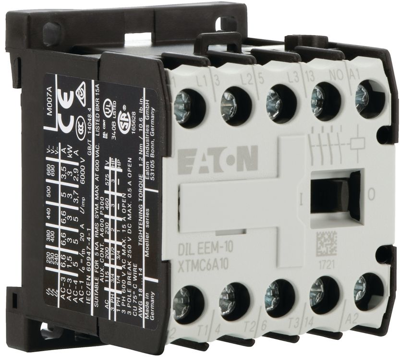

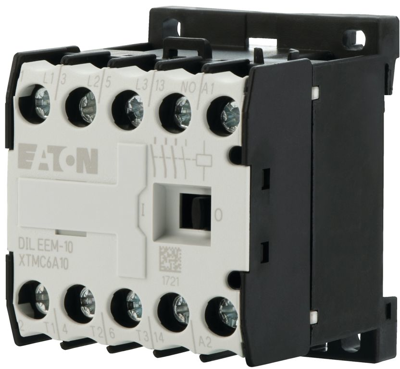

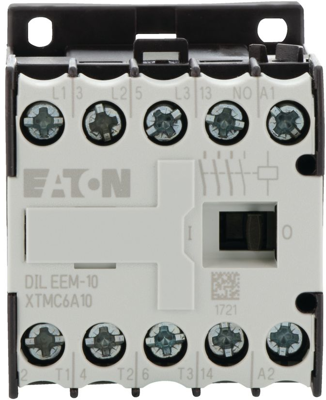

Contactor, 051643, EATON
The device is a 24 V DC contactor with three poles, rated for 380 V to 400 V and capable of handling 3 kW. It features one normally open contact (1 N/O) and is equipped with screw terminals for DC operation.
Technical specifications
| rated voltage (AC) | 690 V | |
| Degree of protection (IP) | IP20 | |
| Rated current | 22 A | |
| Control Voltage | 24 VDC | |
| Pin number | 3 pole | |
| Version | power contactor | |
| Connection | screw connection | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
