012701 | EATON
Power contactor, 4 pole, 22 A, 4 Form A (N/O), coil 24 VDC, screw connection, 012701
Order No.: 82P0446
EAN: 4015080127017
MPN:
012701
DILEM4-G(24VDC)
Unit Price (€ / pc.)
58.6670 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
58.67 € *
Price list
Quantity
Price per unit*
1 pcs.
58.6670 €
3 pcs.
56.1204 €
5 pcs.
53.7880 €
*incl. VAT plus shipping costs
Subject to prior sale

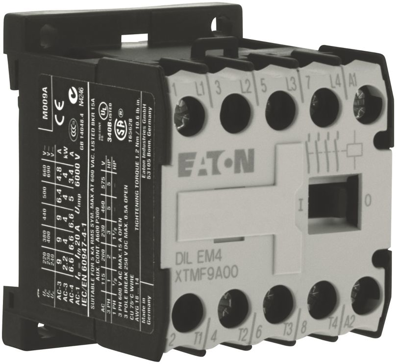

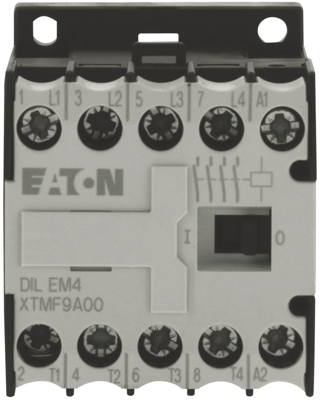

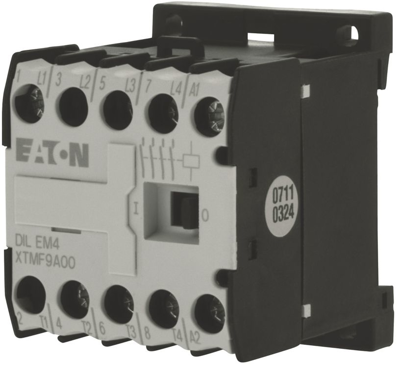

Contactor, 012701, EATON
This contactor, designed for 24 V DC operation, features four poles and is rated for 380 V to 400 V with a power capacity of 4 kW, equipped with screw terminals for secure connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 4 Form A (N/O) | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP20 | |
| Connection | screw connection | |
| Control Voltage | 24 VDC | |
| Rated current | 22 A | |
| rated voltage (AC) | 690 V | |
| Version | power contactor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
