010343 | EATON
Power contactor, 3 pole, 22 A, 1 Form B (N/C), coil 24 VDC, screw connection, 010343
Order No.: 82P0440
EAN: 4015080103431
MPN:
010343
DILEM-01-G(24VDC)
Unit Price (€ / pc.)
59.5714 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
59.57 € *
Price list
Quantity
Price per unit*
1 pcs.
59.5714 €
3 pcs.
56.9891 €
5 pcs.
54.6210 €
*incl. VAT plus shipping costs
Subject to prior sale

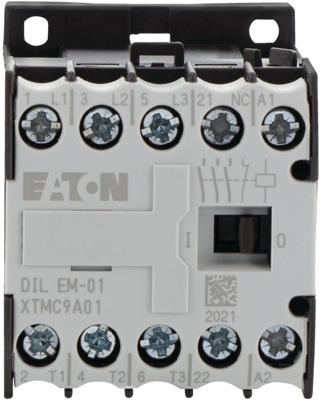

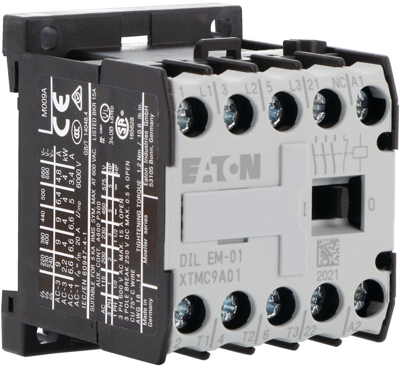

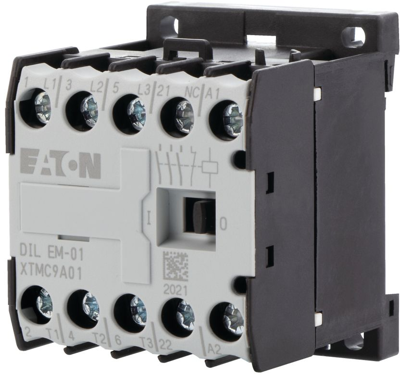

Contactor, 010343, EATON
This contactor operates at 24 V DC and features three poles, suitable for 380 V to 400 V applications with a power rating of 4 kW. It includes one normally closed contact (1 NC) and utilizes screw terminals for DC operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form B (N/C) | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 | |
| Connection | screw connection | |
| Control Voltage | 24 VDC | |
| Rated current | 22 A | |
| rated voltage (AC) | 690 V | |
| Version | power contactor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
