010256 | EATON
Auxiliary switch, 4 pole, 4 Form B (N/C), screw connection, 010256
Order No.: 82P0307
EAN: 4015080102564
MPN:
010256
04DILE
Unit Price (€ / pc.)
21.2415 € *
Available: 5 pcs.
Total Price:
21.24 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2415 €
3 pcs.
20.2062 €
5 pcs.
19.2423 €
10 pcs.
18.1356 €
*incl. VAT plus shipping costs
Subject to prior sale

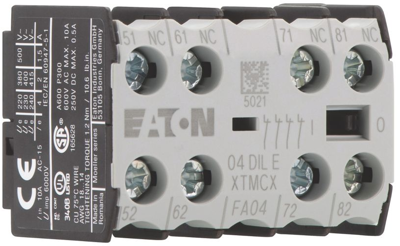

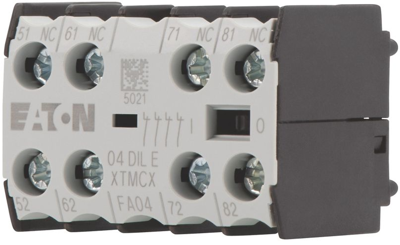

Auxiliary switch module, 010256, EATON
This auxiliary contact module features four poles, four normally closed contacts, front mounting, and screw terminal connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | auxiliary switch | |
| Pin number | 4 pole | |
| Latching switching function | 4 Form B (N/C) | |
| Degree of protection (IP) | IP20 | |
| Connection | screw connection | |
| rated voltage (AC) | 600 V | |
| Assembly | front mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
