010086 | EATON
Power contactor, 3 pole, 22 A, 1 Form B (N/C), coil 24 VAC, screw connection, 010086
Order No.: 82P0436
EAN: 4015080100867
MPN:
010086
DILEM-01(24V50HZ)
Unit Price (€ / pc.)
45.2676 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
45.27 € *
Price list
Quantity
Price per unit*
1 pcs.
45.2676 €
3 pcs.
43.3160 €
5 pcs.
41.5191 €
*incl. VAT plus shipping costs
Subject to prior sale

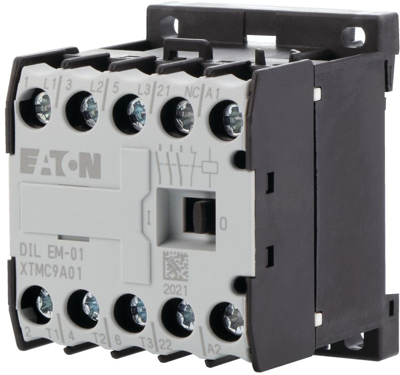

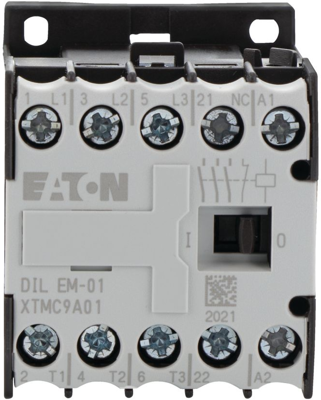

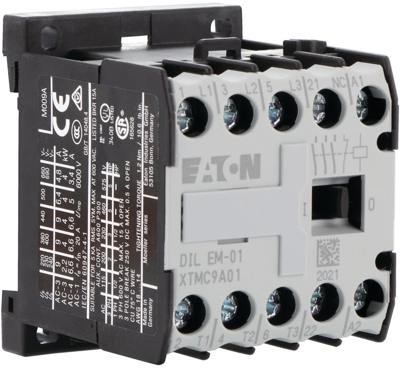

Contactor, 010086, EATON
This contactor operates at 24 V and 50 Hz, featuring three poles and a voltage range of 380 V to 400 V, with a power rating of 4 kW. It includes one normally closed contact (N/C) and is equipped with screw terminals for AC operation.
Technical specifications
| rated voltage (AC) | 690 V | |
| Degree of protection (IP) | IP20 | |
| Rated current | 22 A | |
| Control Voltage | 24 VAC | |
| Pin number | 3 pole | |
| Version | power contactor | |
| Connection | screw connection | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
