002397 | EATON
Auxiliary switch, 4 pole, 1 Form A (N/O) + 3 Form B (N/C), screw connection, 002397
Order No.: 82P0303
EAN: 4015080023975
MPN:
002397
13DILE
Unit Price (€ / pc.)
20.7179 € *
Available: 3 pcs.
Total Price:
20.72 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7179 €
3 pcs.
19.7183 €
5 pcs.
18.7782 €
10 pcs.
17.6953 €
*incl. VAT plus shipping costs
Subject to prior sale

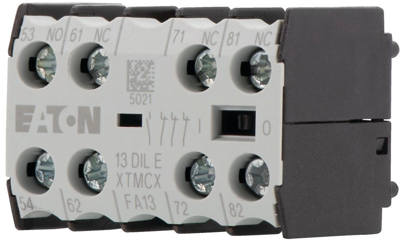

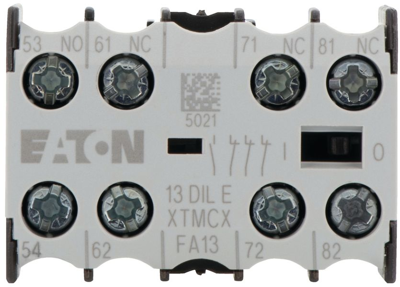

Auxiliary switch module, 002397, EATON
This auxiliary contact module features four poles, comprising one normally open (N/O) and three normally closed (NC) contacts, designed for front mounting with screw terminal connections.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| rated voltage (AC) | 600 V | |
| Degree of protection (IP) | IP20 | |
| Assembly | front mounting | |
| Pin number | 4 pole | |
| Version | auxiliary switch | |
| Connection | screw connection | |
| Latching switching function | 1 Form A (N/O) + 3 Form B (N/C) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
