218985 | EATON
Changeover switch, rotary actuator, 4 pole, 20 A, (W x H x D) 80 x 122 x 137 mm, surface mounting, 218985
Order No.: 82P0988
EAN: 4015082189853
MPN:
218985
Unit Price (€ / pc.)
75.5174 € *
Available: 1 pcs.
Total Price:
75.52 € *
Price list
Quantity
Price per unit*
1 pcs.
75.5174 €
3 pcs.
72.2449 €
5 pcs.
69.2461 €
*incl. VAT plus shipping costs
Subject to prior sale

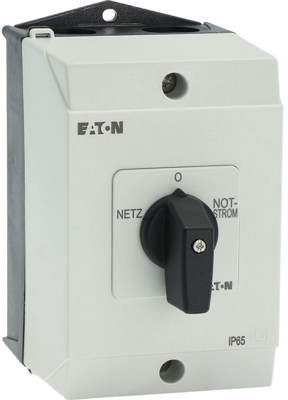

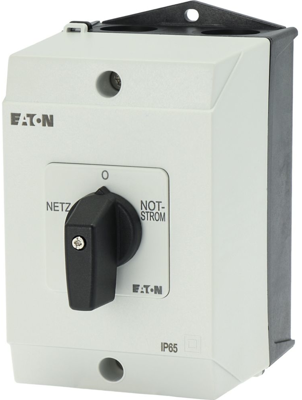

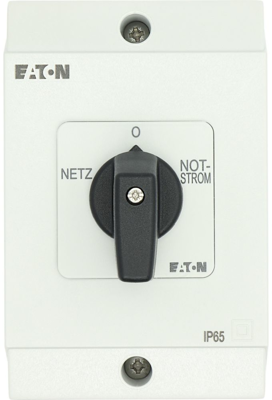

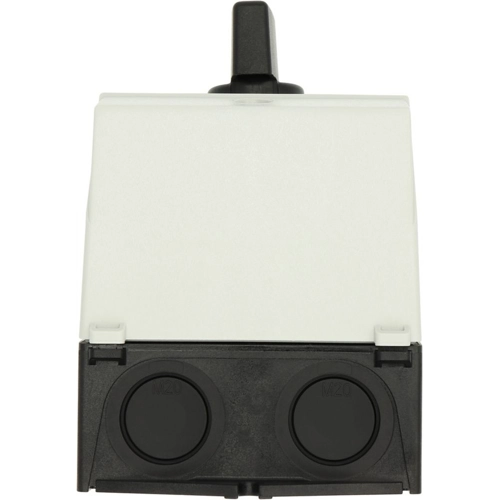

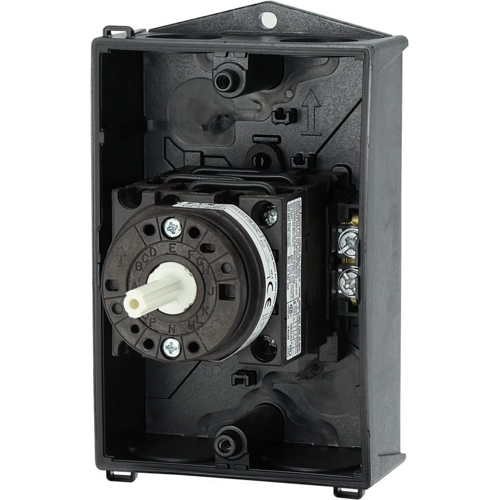

Changeover switch, 218985, EATON
The changeover switch is a T0 model rated at 20 A, designed for surface mounting and featuring a four-contact unit. It includes eight contacts, operates at an angle of 60 degrees, and is maintained with an off position. This switch is suitable for both mains and emergency power applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Depth | 137 mm | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Height | 122 mm | |
| Width | 80 mm | |
| Product type | changeover switch | |
| Permanent current | 20 A | |
| Assembly | surface mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
