207373 | EATON

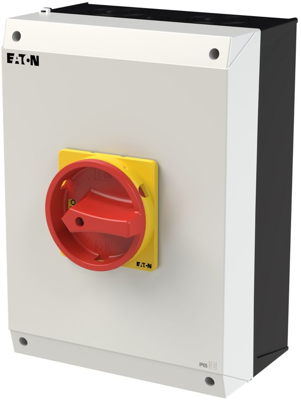

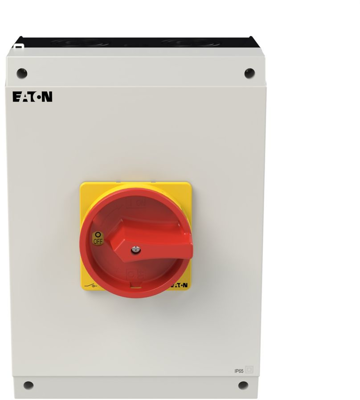

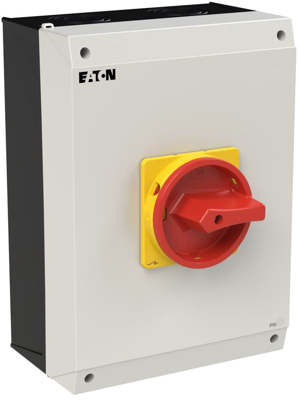

Main switch, rotary actuator, 3 pole, 100 A, (W x H x D) 200 x 180 x 169 mm, surface mounting, 207373
Order No.: 82P0244
EAN: 4015082073732
MPN:
207373
P3-100/I5/SVB
Unit Price (€ / pc.)
230.8362 € *
Standard delivery time from the manufacturer is: On Request
Main switch, 207373, EATON
The main switch, rated at 100 A, is designed for surface mounting and features three poles. It includes an emergency shutdown function, equipped with a red rotary handle and a yellow locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 200 mm | |
| Actuator | rotary actuator | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Assembly | surface mounting | |
| Product type | main switch | |
| Height | 180 mm | |
| Permanent current | 100 A | |
| Depth | 169 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
