207349 | EATON
Main switch, rotary actuator, 4 pole, 63 A, (W x H x D) 160 x 180 x 139 mm, surface mounting, 207349
Order No.: 82P0247
EAN: 4015082073497
MPN:
207349
P3-63/I4/SVB/N
Unit Price (€ / pc.)
169.2299 € *
Standard delivery time from the manufacturer is: On Request
Main switch, 207349, EATON

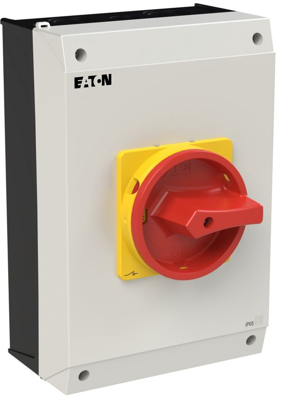

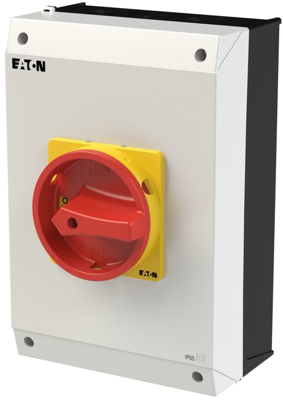

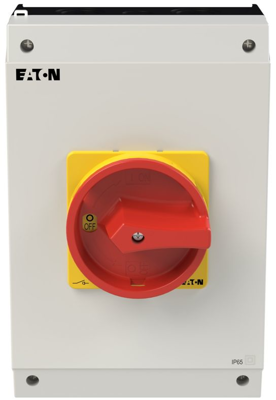

The main switch, P3, rated at 63 A, is designed for surface mounting and features three poles plus a neutral. It includes an emergency shutdown function, equipped with a red rotary handle and a yellow locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Width | 160 mm | |
| Height | 180 mm | |
| Assembly | surface mounting | |
| Depth | 139 mm | |
| Actuator | rotary actuator | |
| Permanent current | 63 A | |
| Product type | main switch | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
