207316 | EATON
Main switch, rotary actuator, 3 pole, 32 A, (W x H x D) 100 x 180 x 115 mm, surface mounting, 207316
Order No.: 82P0235
EAN: 4015082073169
MPN:
207316
Unit Price (€ / pc.)
97.9370 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
97.94 € *
Price list
Quantity
Price per unit*
1 pcs.
97.9370 €
3 pcs.
95.2357 €
5 pcs.
92.6653 €
*incl. VAT plus shipping costs
Subject to prior sale

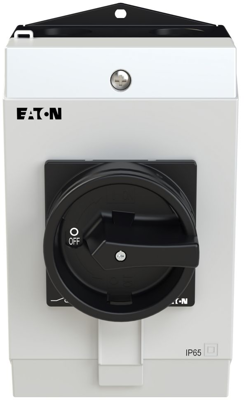

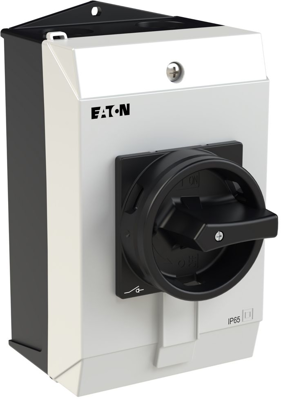

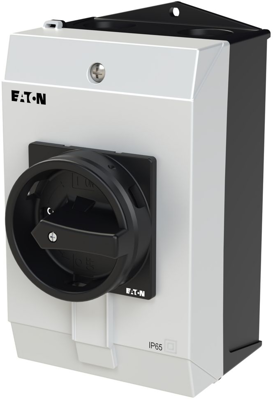

Main switch, 207316, EATON
The main switch, P1, rated at 32 A, is designed for surface mounting and features three poles, including one normally open (N/O) and one normally closed (N/C) contact. It incorporates a STOP function and is equipped with a black rotary handle and a locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Depth | 115 mm | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Height | 180 mm | |
| Width | 100 mm | |
| Product type | main switch | |
| Permanent current | 32 A | |
| Assembly | surface mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
