207295 | EATON
Main switch, rotary actuator, 3 pole, 25 A, (W x H x D) 100 x 180 x 115 mm, surface mounting, 207295
Order No.: 82P0220
EAN: 4015082072957
MPN:
207295
P1-25/I2/SVB-SW/HI11
Unit Price (€ / pc.)
86.3583 € *
Available: 1 pcs.
Total Price:
86.36 € *
Price list
Quantity
Price per unit*
1 pcs.
86.3583 €
3 pcs.
82.6098 €
5 pcs.
79.1945 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 207295, EATON

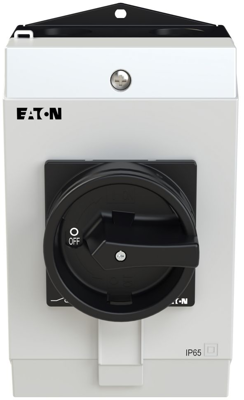

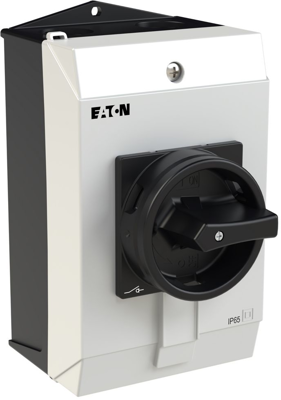

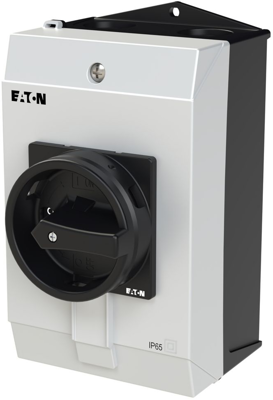

The main switch, P1, rated at 25 A, is designed for surface mounting and features three poles, including one normally open (N/O) and one normally closed (N/C) contact. It incorporates a STOP function and is equipped with a black rotary handle and a locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 100 mm | |
| Actuator | rotary actuator | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Assembly | surface mounting | |
| Product type | main switch | |
| Height | 180 mm | |
| Permanent current | 25 A | |
| Depth | 115 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
