207294 | EATON
Main switch, rotary actuator, 3 pole, 25 A, (W x H x D) 100 x 180 x 115 mm, surface mounting, 207294
Order No.: 82P0222
EAN: 4015082072940
MPN:
207294
P1-25/I2/SVB-SW
Unit Price (€ / pc.)
67.6872 € *
Available: 1 pcs.
Total Price:
67.69 € *
Price list
Quantity
Price per unit*
1 pcs.
67.6872 €
3 pcs.
64.7598 €
5 pcs.
62.0585 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 207294, EATON

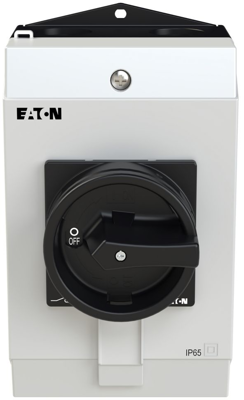

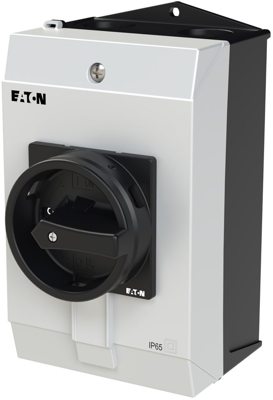

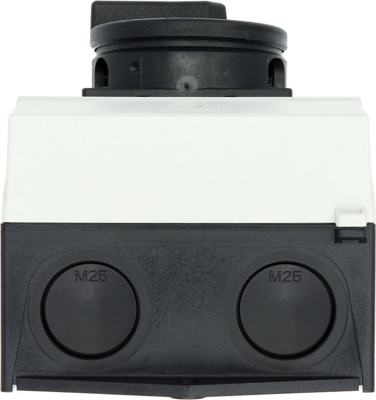

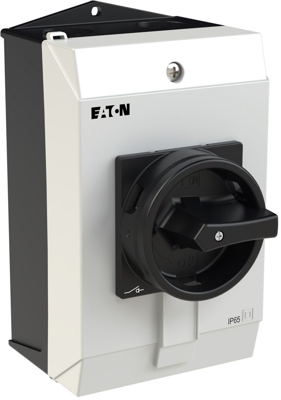

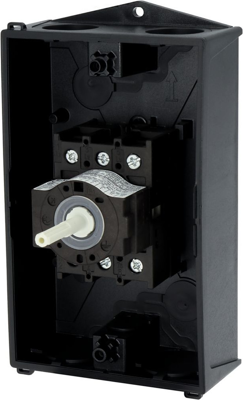

The main switch, P1, rated at 25 A, is designed for surface mounting and features three poles along with a STOP function. It is equipped with a black rotary handle and a locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Depth | 115 mm | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Height | 180 mm | |
| Width | 100 mm | |
| Product type | main switch | |
| Permanent current | 25 A | |
| Assembly | surface mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
