207293 | EATON
Main switch, rotary actuator, 3 pole, 25 A, (W x H x D) 100 x 180 x 115 mm, surface mounting, 207293
Order No.: 82P0224
EAN: 4015082072933
MPN:
207293
P1-25/I2/SVB
Unit Price (€ / pc.)
67.6872 € *
Available: 1 pcs.
Total Price:
67.69 € *
Price list
Quantity
Price per unit*
1 pcs.
67.6872 €
3 pcs.
64.7598 €
5 pcs.
62.0585 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 207293, EATON

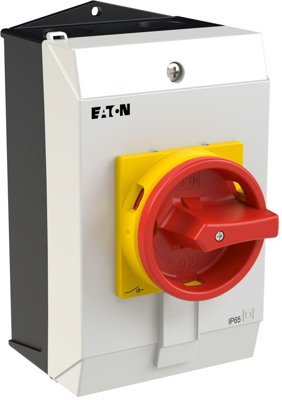

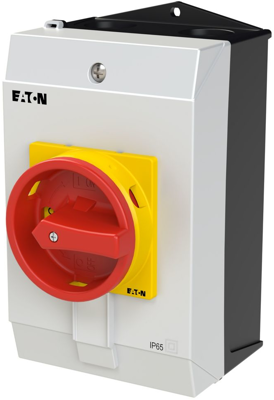

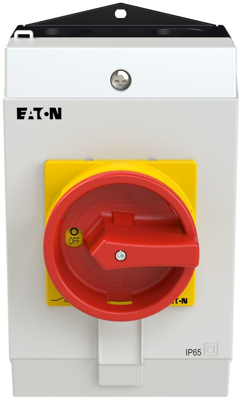

The main switch, P1, rated at 25 A, is designed for surface mounting and features three poles. It includes an emergency shutdown function, equipped with a red rotary handle and a yellow locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Depth | 115 mm | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Height | 180 mm | |
| Width | 100 mm | |
| Product type | main switch | |
| Permanent current | 25 A | |
| Assembly | surface mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
