207153 | EATON
Main switch, rotary actuator, 4 pole, 20 A, (W x H x D) 80 x 130 x 137 mm, surface mounting, 207153
Order No.: 82P0267
EAN: 4015082071530
MPN:
207153
T0-3-15680/I1/SVB
Unit Price (€ / pc.)
69.9482 € *
Available: 1 pcs.
Total Price:
69.95 € *
Price list
Quantity
Price per unit*
1 pcs.
69.9482 €
3 pcs.
66.9256 €
5 pcs.
64.1529 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 207153, EATON

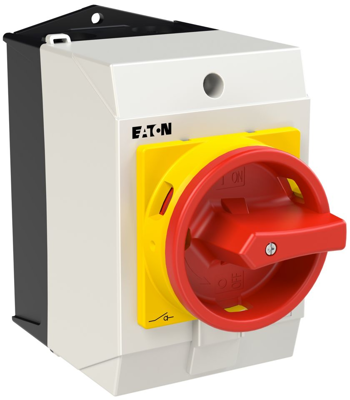

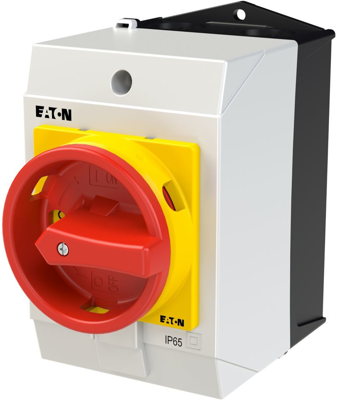

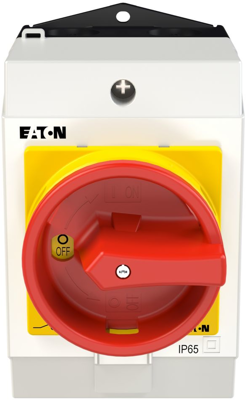

The main switch, rated at 20 A, is designed for surface mounting and features three contact units with three poles plus a neutral. It includes one normally open and one normally closed contact, along with an emergency shutdown function. The switch is equipped with a red rotary handle and a yellow locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Width | 80 mm | |
| Height | 130 mm | |
| Assembly | surface mounting | |
| Depth | 137 mm | |
| Actuator | rotary actuator | |
| Permanent current | 20 A | |
| Product type | main switch | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
