207144 | EATON
Main switch, rotary actuator, 2 pole, 20 A, (W x H x D) 80 x 110 x 137 mm, surface mounting, 207144
Order No.: 82P0258
EAN: 4015082071448
MPN:
207144
Unit Price (€ / pc.)
51.7412 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
51.74 € *
Price list
Quantity
Price per unit*
1 pcs.
51.7412 €
3 pcs.
49.4921 €
5 pcs.
47.4453 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 207144, EATON

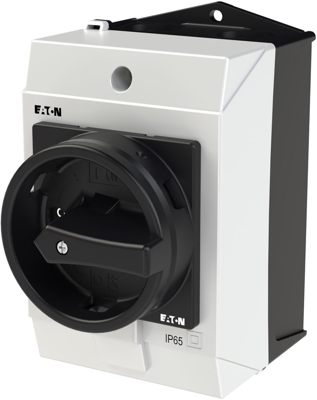

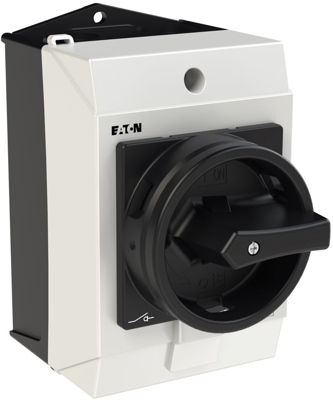

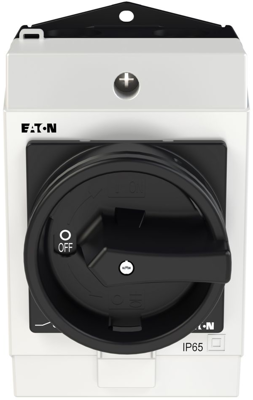

The main switch, T0, rated at 20 A, is designed for surface mounting and features one contact unit with two poles, incorporating a STOP function. It is equipped with a black rotary handle and a locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | main switch | |
| Pin number | 2 pole | |
| Actuator | rotary actuator | |
| Assembly | surface mounting | |
| Width | 80 mm | |
| Height | 110 mm | |
| Depth | 137 mm | |
| Permanent current | 20 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
