207143 | EATON
Main switch, rotary actuator, 2 pole, 20 A, (W x H x D) 80 x 110 x 137 mm, surface mounting, 207143
Order No.: 82P0259
EAN: 4015082071431
MPN:
207143
T0-1-102/I1/SVB
Unit Price (€ / pc.)
53.0145 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
53.01 € *
Price list
Quantity
Price per unit*
1 pcs.
53.0145 €
3 pcs.
50.7178 €
5 pcs.
48.6115 €
*incl. VAT plus shipping costs
Subject to prior sale

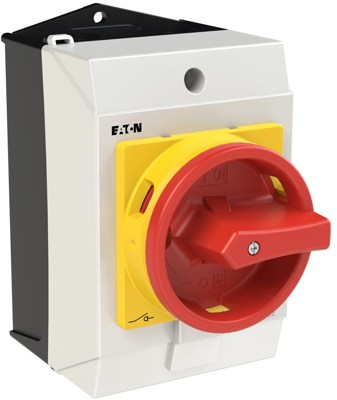

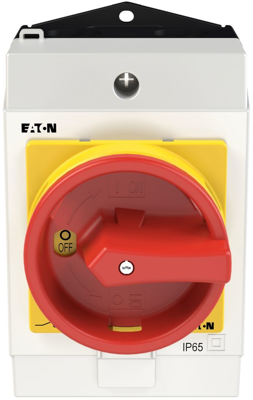

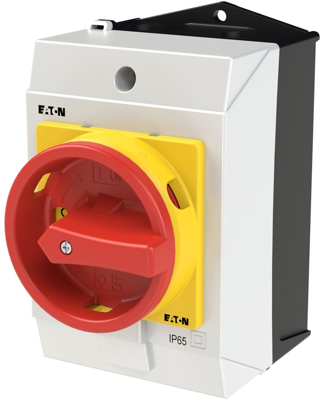

Main switch, 207143, EATON
The main switch, rated at 20 A, is designed for surface mounting and features a single contact unit with two poles. It includes an emergency shutdown function, complemented by a red rotary handle and a yellow locking ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | main switch | |
| Pin number | 2 pole | |
| Actuator | rotary actuator | |
| Assembly | surface mounting | |
| Width | 80 mm | |
| Height | 110 mm | |
| Depth | 137 mm | |
| Permanent current | 20 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
