207140 | EATON

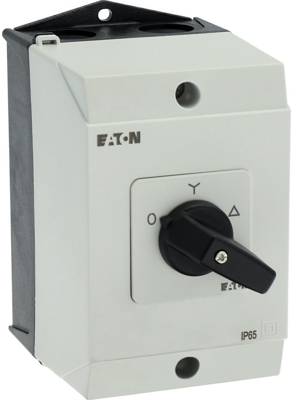

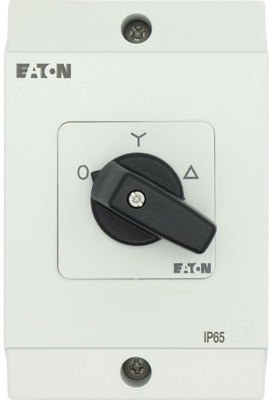

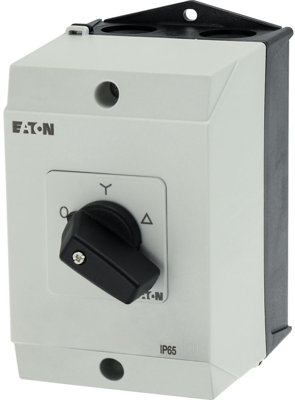

Star-delta switch, rotary actuator, 3 pole, 20 A, (W x H x D) 80 x 122 x 137 mm, surface mounting, 207140
Order No.: 82P0872
EAN: 4015082071400
MPN:
207140
T0-4-8410/I1
Unit Price (€ / pc.)
68.4964 € *
Available: 1 pcs.
Total Price:
68.50 € *
Price list
Quantity
Price per unit*
1 pcs.
68.4964 €
3 pcs.
65.5333 €
5 pcs.
62.8082 €
*incl. VAT plus shipping costs
Subject to prior sale
Star-delta switch, 207140, EATON
A star-delta switch, rated at 20 A, designed for surface mounting, features a four-contact unit with a total of eight contacts and operates at an angle of 60 degrees, maintaining its position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Width | 80 mm | |
| Height | 122 mm | |
| Assembly | surface mounting | |
| Depth | 137 mm | |
| Actuator | rotary actuator | |
| Permanent current | 20 A | |
| Product type | star-delta switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
