207123 | EATON
Changeover switch, rotary actuator, 3 pole, 20 A, (W x H x D) 80 x 122 x 137 mm, surface mounting, 207123
Order No.: 82P0987
EAN: 4015082071233
MPN:
207123
T0-3-8212/I1
Unit Price (€ / pc.)
56.2037 € *
Available: 1 pcs.
Total Price:
56.20 € *
Price list
Quantity
Price per unit*
1 pcs.
56.2037 €
3 pcs.
53.7761 €
5 pcs.
51.5389 €
*incl. VAT plus shipping costs
Subject to prior sale

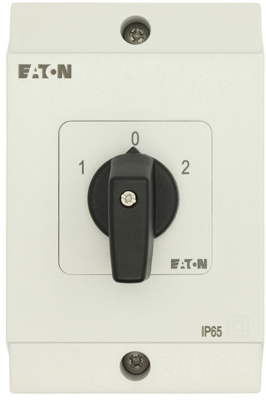

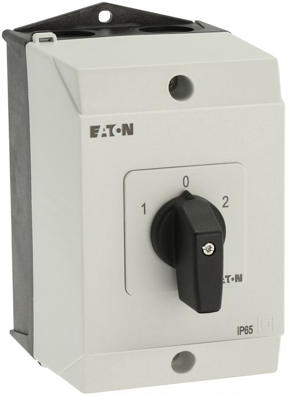

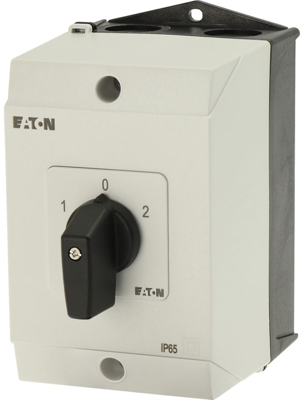

Changeover switch, 207123, EATON
A changeover switch rated at 20 A, designed for surface mounting, features a three-contact unit with six contacts and a maintained angle of 60 degrees.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Width | 80 mm | |
| Height | 122 mm | |
| Assembly | surface mounting | |
| Depth | 137 mm | |
| Actuator | rotary actuator | |
| Permanent current | 20 A | |
| Product type | changeover switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
