081587 | EATON
Main switch, rotary actuator, 4 pole, 25 A, (W x H x D) 83 x 65 x 119 mm, flush mounting, 081587
Order No.: 82P0226
EAN: 4015080815877
MPN:
081587
P1-25/EA/SVB/N
Unit Price (€ / pc.)
68.1394 € *
Available: 1 pcs.
Total Price:
68.14 € *
Price list
Quantity
Price per unit*
1 pcs.
68.1394 €
3 pcs.
65.1882 €
5 pcs.
62.4750 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 081587, EATON

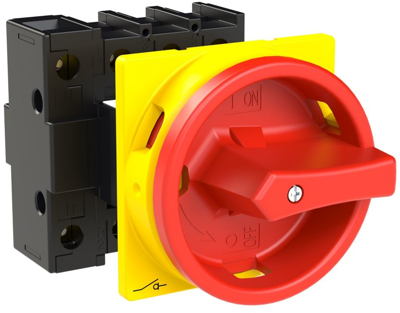

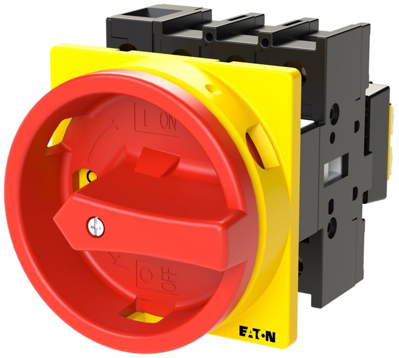

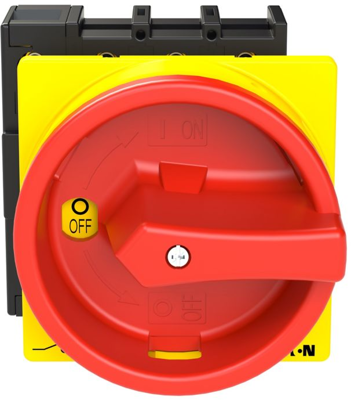

The main switch, designated as P1, has a current rating of 25 A and is designed for flush mounting. It features three poles plus a neutral, an emergency shutdown function, and is equipped with a red rotary handle and a yellow locking ring. This switch can be locked in the off position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | main switch | |
| Pin number | 4 pole | |
| Actuator | rotary actuator | |
| Assembly | flush mounting | |
| Width | 83 mm | |
| Height | 65 mm | |
| Depth | 119 mm | |
| Permanent current | 25 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS conform | Yes |
