057857 | EATON
Main switch, rotary actuator, 3 pole, 63 A, (W x H x D) 87 x 102 x 128 mm, flush mounting, 057857
Order No.: 82P0253
EAN: 4015080578574
MPN:
057857
P3-63/EA/SVB-SW
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
119.4165 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
119.42 € *
Price list
Quantity
Price per unit*
1 pcs.
119.4165 €
3 pcs.
116.1202 €
5 pcs.
112.9786 €
*incl. VAT plus shipping costs
Subject to prior sale
Main switch, 057857, EATON

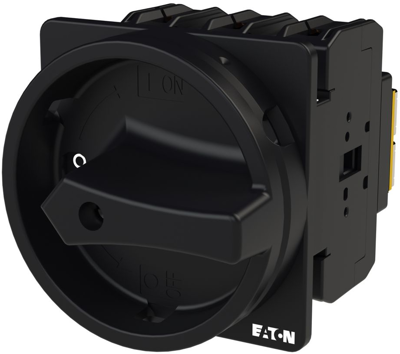

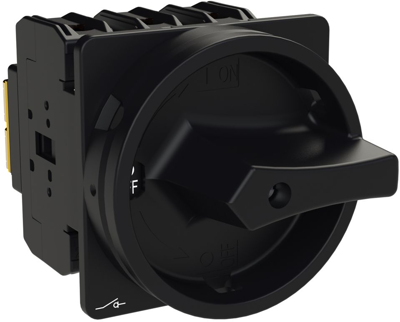

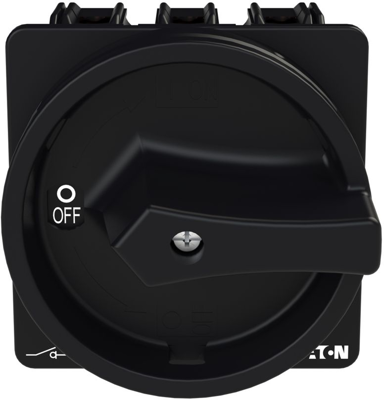

The main switch, rated at 63 A, is designed for flush mounting and features three poles along with a STOP function. It is equipped with a black rotary handle and a locking ring, allowing it to be secured in the OFF position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | main switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Assembly | flush mounting | |
| Width | 87 mm | |
| Height | 102 mm | |
| Depth | 128 mm | |
| Permanent current | 63 A | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
