041097 | EATON
Main switch, rotary actuator, 3 pole, 25 A, (W x H x D) 65 x 65 x 119 mm, flush mounting, 041097
Order No.: 82P0231
EAN: 4015080410973
MPN:
041097
P1-25/EA/SVB
Unit Price (€ / pc.)
53.9308 € *
Available: 1 pcs.
Total Price:
53.93 € *
Price list
Quantity
Price per unit*
1 pcs.
53.9308 €
3 pcs.
51.6103 €
5 pcs.
49.4445 €
*incl. VAT plus shipping costs
Subject to prior sale

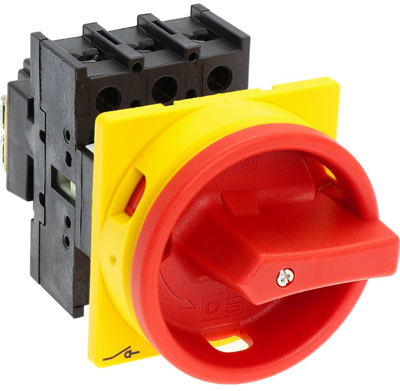

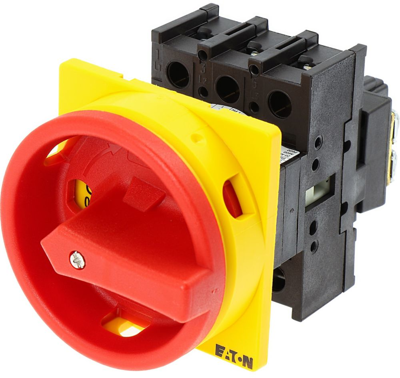

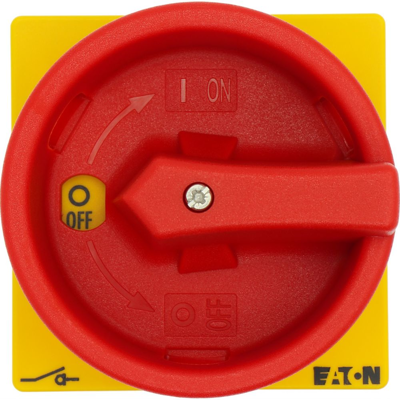

Main switch, 041097, EATON
The main switch, designated as P1, has a current rating of 25 A and is designed for flush mounting. It features three poles and includes an emergency shut-off function. The switch is equipped with a red rotary handle and a yellow locking ring, allowing it to be securely locked in the off position.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Width | 65 mm | |
| Height | 65 mm | |
| Assembly | flush mounting | |
| Depth | 119 mm | |
| Actuator | rotary actuator | |
| Permanent current | 25 A | |
| Product type | main switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
| Date of RoHS guidelines | 3/31/15 |
