038854 | EATON

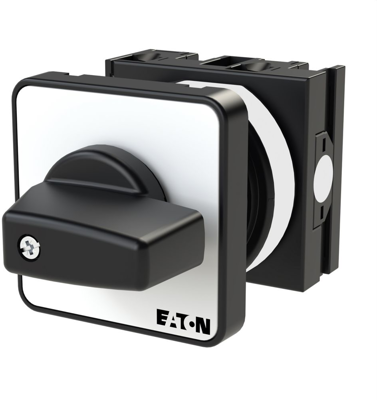

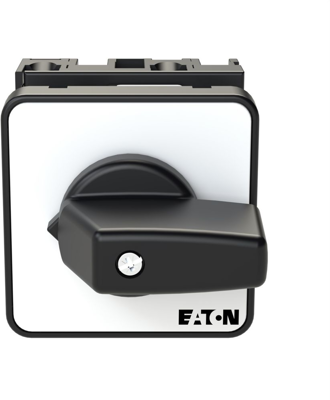

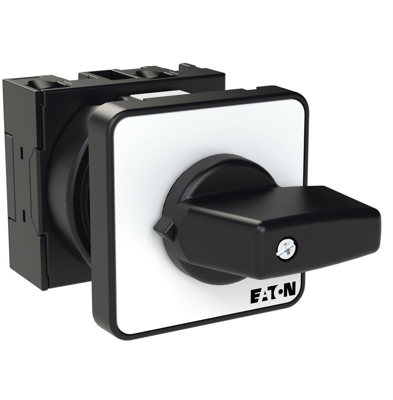

Load-break switch, rotary actuator, 1 pole, 20 A, (W x H x D) 48 x 48 x 76 mm, flush mounting, 038854
Order No.: 82P0153
EAN: 4015080388548
MPN:
038854
T0-1-15401/E
Unit Price (€ / pc.)
29.7500 € *
Available: 1 pcs.
Total Price:
29.75 € *
Price list
Quantity
Price per unit*
1 pcs.
29.7500 €
3 pcs.
28.3339 €
5 pcs.
26.6560 €
10 pcs.
25.1566 €
*incl. VAT plus shipping costs
Subject to prior sale
Load-break switch, 038854, EATON
This ON-OFF switch, rated at 20 A, is designed for flush mounting, feature a single contact unit with one contact positioned at a 45° angle, maintained, and include an off position marked as 0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator | rotary actuator | |
| Depth | 76 mm | |
| Pin number | 1 pole | |
| Permanent current | 20 A | |
| Degree of protection (IP) | IP65 | |
| Product type | load-break switch | |
| Width | 48 mm | |
| Assembly | flush mounting | |
| Height | 48 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
