019872 | EATON

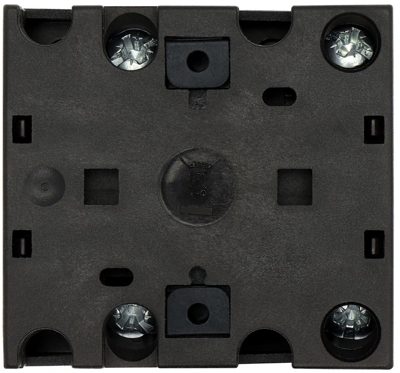

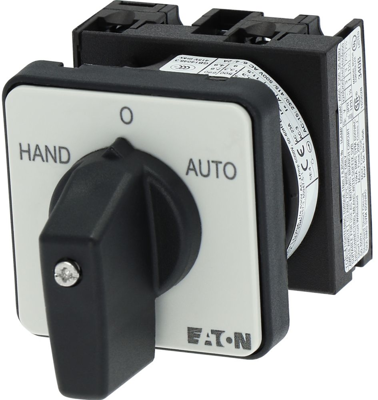

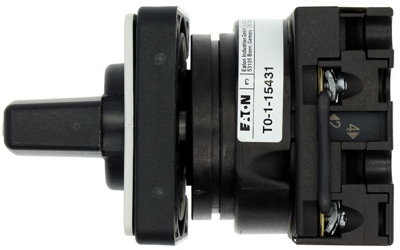

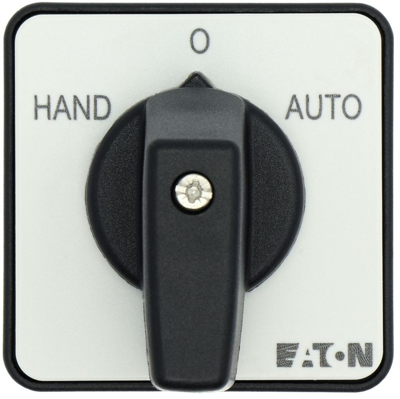

Changeover switch, rotary actuator, 1 pole, 20 A, (W x H x D) 48 x 48 x 76 mm, flush mounting, 019872
Order No.: 82P0989
EAN: 4015080198727
MPN:
019872
T0-1-15431/E
Unit Price (€ / pc.)
30.2498 € *
Available: 1 pcs.
Total Price:
30.25 € *
Price list
Quantity
Price per unit*
1 pcs.
30.2498 €
3 pcs.
28.8218 €
5 pcs.
27.1082 €
10 pcs.
25.5850 €
*incl. VAT plus shipping costs
Subject to prior sale
Changeover switch, 019872, EATON
This changeover switch, rated at 20 A, features a flush mounting design with one contact unit, comprising two contacts positioned at a 45-degree angle, and is maintained with an off position indicated as 0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator | rotary actuator | |
| Depth | 76 mm | |
| Pin number | 1 pole | |
| Permanent current | 20 A | |
| Degree of protection (IP) | IP65 | |
| Product type | changeover switch | |
| Width | 48 mm | |
| Assembly | flush mounting | |
| Height | 48 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85365015 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
