015147 | EATON
Load-break switch, rotary actuator, 2 pole, 20 A, (W x H x D) 54 x 55 x 82 mm, 015147
Order No.: 82P0156
EAN: 4015080151470
MPN:
015147
T0-1-102/IVS
Unit Price (€ / pc.)
35.6643 € *
Available: 1 pcs.
Total Price:
35.66 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6643 €
3 pcs.
33.9626 €
5 pcs.
31.9396 €
10 pcs.
30.1546 €
*incl. VAT plus shipping costs
Subject to prior sale
Load-break switch, 015147, EATON

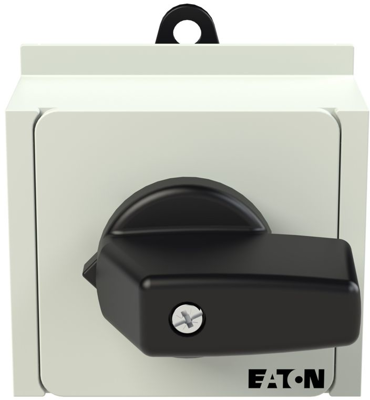

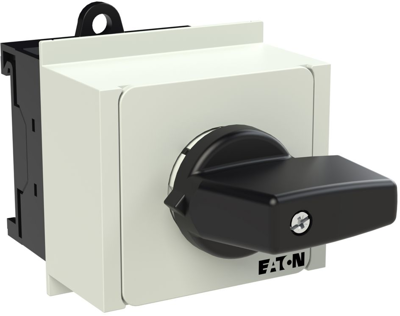

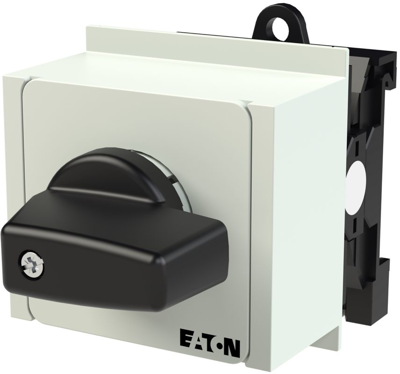

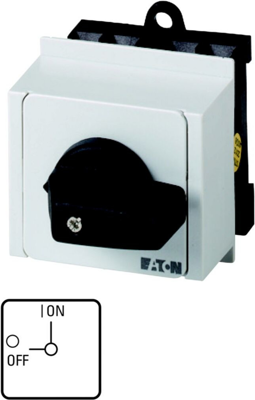

This On-Off switch, rated at 20 A, designed for service distribution board installation, featuring one contact unit, two poles, and equipped with a black thumb grip and front plate.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | load-break switch | |
| Pin number | 2 pole | |
| Actuator | rotary actuator | |
| Width | 54 mm | |
| Height | 55 mm | |
| Depth | 82 mm | |
| Permanent current | 20 A | |
| Degree of protection (IP) | IP30 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
