009046 | EATON

Load-break switch, rotary actuator, 2 pole, 20 A, (W x H x D) 75 x 65 x 65 mm, flush mounting, 009046

Order No.: 82P0151
EAN: 4015080090465
MPN:
009046
T0-1-102/E-RT
009046 EATON Circuit Breakers Image 1
009046 EATON Circuit Breakers Image 2
009046 EATON Circuit Breakers Image 3
009046 EATON Circuit Breakers Image 4
Image may differ
Unit Price (€ / pc.)
28.6433 € *
Available: 2 pcs.
Total Price:
28.64 € *
Price list
Quantity
Price per unit*
1 pcs.
28.6433 €
3 pcs.
27.2867 €
5 pcs.
25.6564 €
10 pcs.
24.2284 €
*incl. VAT plus shipping costs
Subject to prior sale

Load-break switch, 09046, EATON

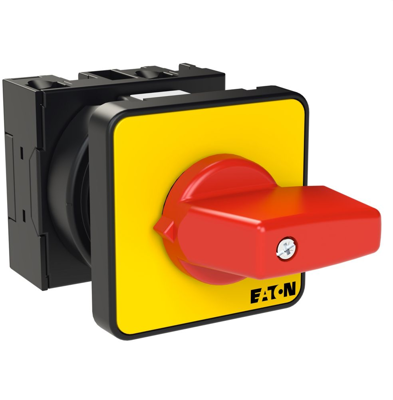

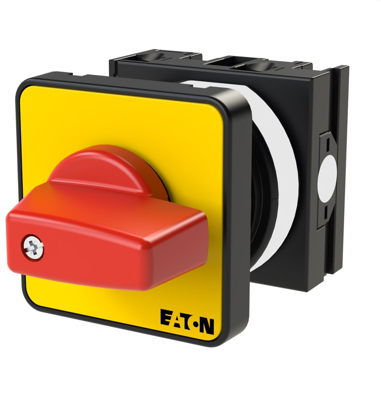

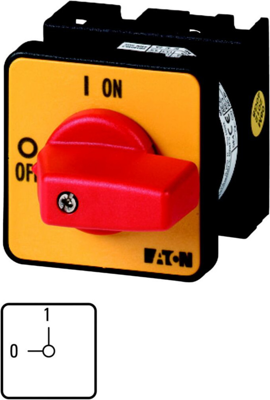

The On-Off switch features a 20 A capacity, is designed for flush mounting, and includes a single contact unit with two poles. It is equipped with an emergency shut-off function, highlighted by a red thumb grip and a yellow front plate.

Technical specifications
Filter Property Value
Degree of protection (IP) IP65
Actuator rotary actuator
Assembly flush mounting
Permanent current 20 A
Height 65 mm
Depth 65 mm
Width 75 mm
Product type load-break switch
Pin number 2 pole
Logistics
Property Value
Country of origin GB
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
SVHC free No
Date of RoHS guidelines 3/31/15
