289196 | EATON

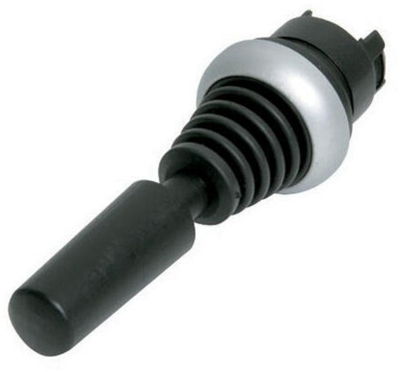

Joystick front element, 2 positions, unlit, groping, waistband round, black, front ring silver, mounting Ø 22.5 mm, 289196

Order No.: 82P0368
EAN: 4015082891961
MPN:
289196
M22-WJ2V
Series: RMQ-Titan
289196 EATON Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
72.7804 € *
Available: 1 pcs.
Total Price:
72.78 € *
Price list
Quantity
Price per unit*
1 pcs.
72.7804 €
3 pcs.
69.6269 €
5 pcs.
66.7471 €
*incl. VAT plus shipping costs
Subject to prior sale

Joystick, 289196, EATON

The joystick features a single operational point for each directional movement, constructed with a plastic shaft and offering two distinct positions. It is designed with a titanium bezel and operates momentarily in a vertical orientation.

Technical specifications
Filter Property Value
Contact function groping
Installation diameter 22.5 mm
Type of mounting front panel mounting
Front ring colour silver
Actuator colour black
Product type joystick front element
Version 2 positions
Protection class IP65
Collar shape of the front frame round
can be illuminated No
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Dodecamethylcyclohexasiloxane, Decamethylcyclopentasiloxane, Octamethylcyclotetrasiloxane
SVHC free No
RoHS conform Yes
