216900 | EATON

Key switch, unlit, latching, waistband round, black, front ring silver gray, 60°, trigger position 1 + 0 + 2, mounting Ø 22.5 mm, 216900

Order No.: 82P0845
EAN: 4015082169008
MPN:
216900
M22-WRS3
Series: M22

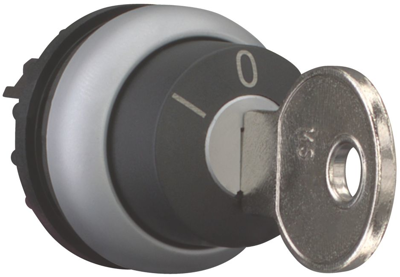

216900 EATON Actuators, Signal Elements and Front Elements Image 1

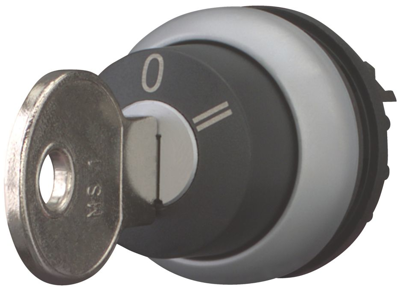

216900 EATON Actuators, Signal Elements and Front Elements Image 2

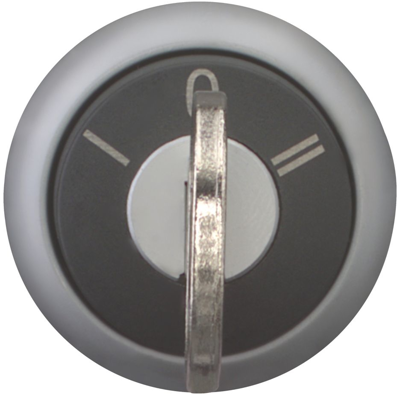

216900 EATON Actuators, Signal Elements and Front Elements Image 3
Image may differ
Unit Price (€ / pc.)
60.8566 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
60.86 € *
Price list
Quantity
Price per unit*
1 pcs.
60.8566 €
3 pcs.
58.2148 €
5 pcs.
55.8110 €
*incl. VAT plus shipping costs
Subject to prior sale

Key switch, 216900, EATON

The actuator is key-operated, momentary, featuring three positions, Keywithdrawable: I, 0, II. The bezel is made of titanium.

Technical specifications
Filter Property Value
Rotation angle 60°
Protection class IP66
Contact function latching
Trigger position key 1 + 0 + 2
Actuator colour black
Product type key switch
Collar shape of the front frame round
can be illuminated No
Front ring colour silver gray
Installation diameter 22.5 mm
Logistics
Property Value
Country of origin MA
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
