185184 | EATON

Mushroom pushbutton, unlit, 2 Form B (N/C), red, mounting Ø 22.5 mm, 185184

Order No.: 82P0704
EAN: 4015081806690
MPN:
185184
C22-PV-K02-P10

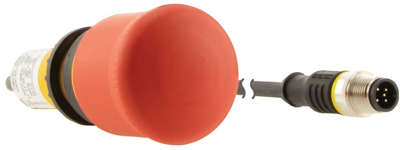

185184 EATON Actuators, Signal Elements and Front Elements Image 1

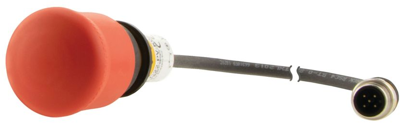

185184 EATON Actuators, Signal Elements and Front Elements Image 2

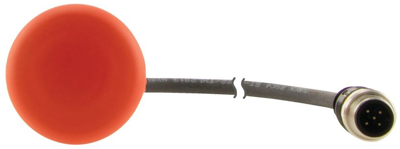

185184 EATON Actuators, Signal Elements and Front Elements Image 3
Image may differ
Unit Price (€ / pc.)
73.7919 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
73.79 € *
Price list
Quantity
Price per unit*
1 pcs.
73.7919 €
3 pcs.
70.5789 €
5 pcs.
67.6634 €
*incl. VAT plus shipping costs
Subject to prior sale

Emergency stop pushbutton, 185184, EATON

The emergency stop pushbutton features a mushroom shape with a diameter of 38 mm and incorporates a pull-to-release mechanism. It includes two normally closed (NC) contacts and is equipped with a black cable that has a 5-pole M12A plug, measuring 0.2 meters in length.

Technical specifications
Protection class IP66
can be illuminated No
Product type mushroom pushbutton
Latching switching function 2 Form B (N/C)
Installation diameter 22.5 mm
Connection M12 plug, 5 pole
Actuator colour red
Type of mounting panel mounting
Logistics
Customs tariff number 85365011
Country of origin HU
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
