121460 | EATON

Mushroom pushbutton, illuminable, latching, waistband round, red, mounting Ø 22.5 mm, 121460

Order No.: 82P0708
EAN: 4015081192809
MPN:
121460
M22-PVLT45P
Series: M22

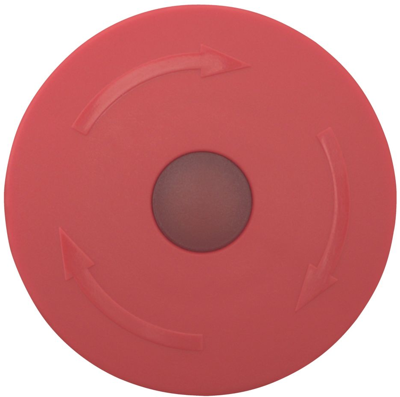

121460 EATON Actuators, Signal Elements and Front Elements Image 1

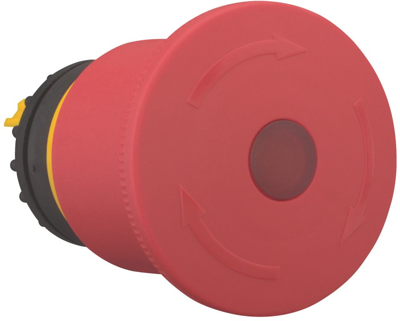

121460 EATON Actuators, Signal Elements and Front Elements Image 2

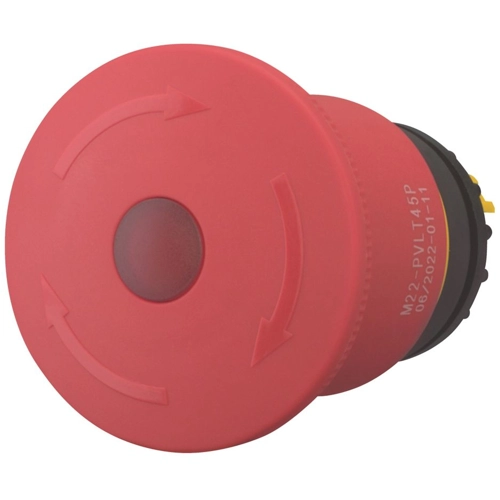

121460 EATON Actuators, Signal Elements and Front Elements Image 3
Image may differ
Unit Price (€ / pc.)
39.6746 € *
Available: 1 pcs.
Total Price:
39.67 € *
Price list
Quantity
Price per unit*
1 pcs.
39.6746 €
3 pcs.
37.7825 €
5 pcs.
35.5453 €
10 pcs.
33.5461 €
*incl. VAT plus shipping costs
Subject to prior sale

Emergency stop pushbutton, 121460, EATON

The RMQ-Titan emergency stop pushbutton features a palm-tree shape with a diameter of 45 mm. It is equipped with an illuminated LED element and incorporates a turn-to-release function.

Technical specifications
Contact function latching
Installation diameter 22.5 mm
Actuator colour red
Product type mushroom pushbutton
Protection class IP66/IP67/IP69/IP69K
Collar shape of the front frame round
can be illuminated Yes
Logistics
Country of origin MA
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
