111783 | EATON

Key switch, unlit, latching, waistband round, black, front ring silver gray, 60°, trigger position 0 + 1, mounting Ø 22.5 mm, 111783

Order No.: 82P0836
EAN: 4015081113330
MPN:
111783
M22-WRS-MS4

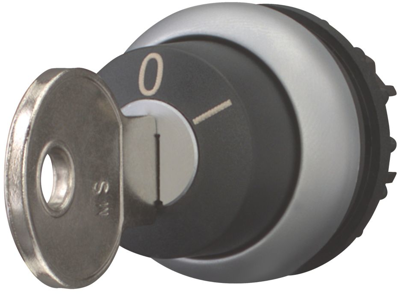

111783 EATON Actuators, Signal Elements and Front Elements Image 1

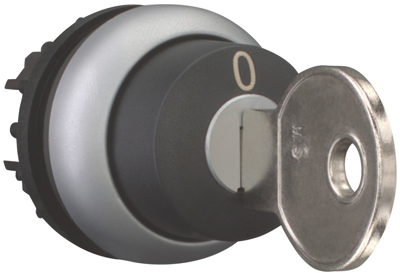

111783 EATON Actuators, Signal Elements and Front Elements Image 2

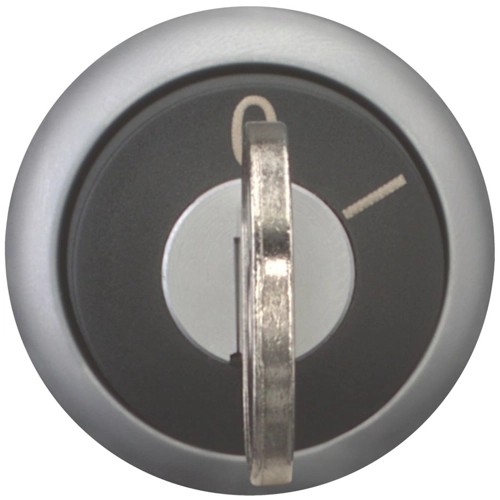

111783 EATON Actuators, Signal Elements and Front Elements Image 3
Image may differ
Unit Price (€ / pc.)
74.5178 € *
Available: 2 pcs.
Total Price:
74.52 € *
Price list
Quantity
Price per unit*
1 pcs.
74.5178 €
3 pcs.
71.2929 €
5 pcs.
68.3417 €
*incl. VAT plus shipping costs
Subject to prior sale

Key switch, 111783, EATON

The actuator is key-operated, maintained in two positions, designated as MS4, with a key that is not withdrawable. The bezel is made of titanium.

Technical specifications
Filter Property Value
Product type key switch
Protection class IP66
Installation diameter 22.5 mm
Front ring colour silver gray
can be illuminated No
Rotation angle 60°
Contact function latching
Collar shape of the front frame round
Trigger position key 0 + 1
Actuator colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
