111779 | EATON

Key switch, unlit, latching, waistband round, black, front ring silver gray, 60°, trigger position 0 + 1, mounting Ø 22.5 mm, 111779

Order No.: 82P0834
EAN: 4015081113293
MPN:
111779
M22-WRS-MS20

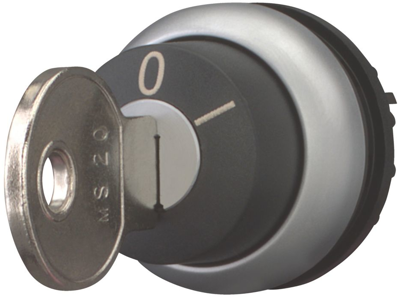

111779 EATON Actuators, Signal Elements and Front Elements Image 1

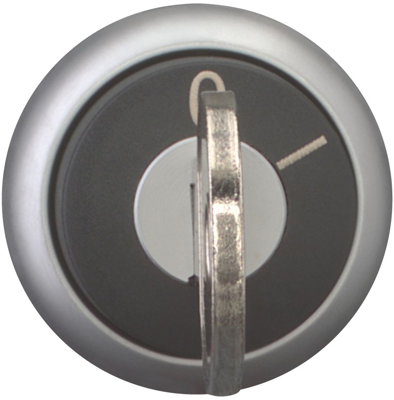

111779 EATON Actuators, Signal Elements and Front Elements Image 2

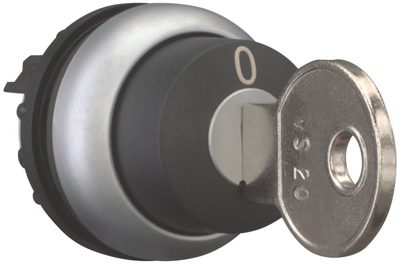

111779 EATON Actuators, Signal Elements and Front Elements Image 3
Image may differ
Unit Price (€ / pc.)
74.5178 € *
Available: 1 pcs.
Total Price:
74.52 € *
Price list
Quantity
Price per unit*
1 pcs.
74.5178 €
3 pcs.
71.2929 €
5 pcs.
68.3417 €
*incl. VAT plus shipping costs
Subject to prior sale

Key switch, 111779, EATON

The actuator is key-operated, maintained in two positions, designated as MS20, with a key that is not withdrawable. The bezel is made of titanium.

Technical specifications
Filter Property Value
Contact function latching
Installation diameter 22.5 mm
Front ring colour silver gray
Trigger position key 0 + 1
Actuator colour black
Product type key switch
Protection class IP66
Rotation angle 60°
Collar shape of the front frame round
can be illuminated No
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
