51-372.F22D | eao
Key switch, Ø 18 mm, round, 2 NC / 2 NO, Maintained (a) - Rest (a) - Maintained (a), Plug-in terminal, 2.8 x 0.5 mm, IP65, according to DIN EN 60529
Unit Price (€ / pc.)
82.4194 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
82.42 € *
Price list
Quantity
Price per unit*
1 pcs.
82.4194 €
2 pcs.
78.6114 €
4 pcs.
75.1485 €
*incl. VAT plus shipping costs
Subject to prior sale

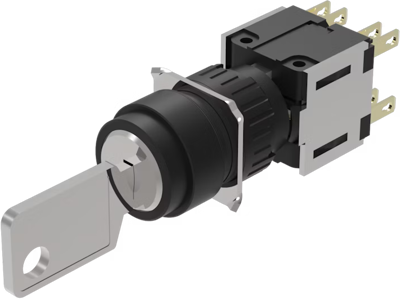

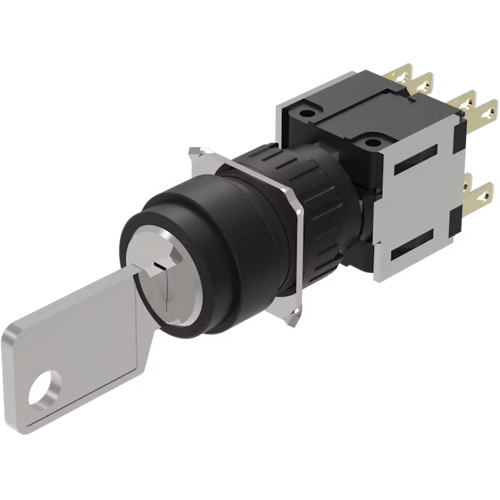

Key switch, 51-372.F22D, eao
Key switch, Ø 18 mm, round, 2 NC / 2 NO, Maintained (a) - Rest (a) - Maintained (a), Plug-in terminal, 2.8 x 0.5 mm, IP65, according to DIN EN 60529.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 5 A/250 V | |
| Trigger position key | 1 + 0 + 2 | |
| Connection | plug-in connector 2.8 x 0.5 mm | |
| Degree of protection (IP) | IP65 | |
| Rotation angle | 2 x 90° | |
| Latching switching function | On-Off-On | |
| contact surface | gold-plated | |
| Version | latching | |
| Installation diameter | 18 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
