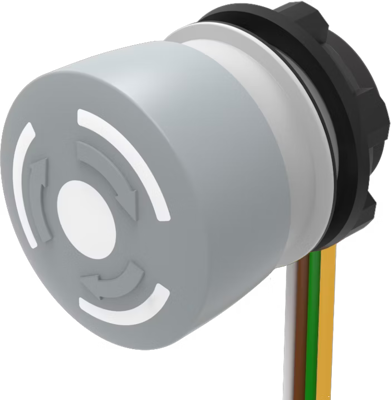

84-6240.0040 | eao
Stop switch, Ø 22.3 mm, Ø 32 mm, mushroom-head, non illuminative, Grey, Plastic, opaque, round, 2 NC, Maintained, Flat ribbon cable 300 mm, IP65, IP66, IP67, according to DIN EN 60529, Twist to unlock, none
Unit Price (€ / pc.)
42.7805 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
42.78 € *
Price list
Quantity
Price per unit*
1 pcs.
42.7805 €
3 pcs.
40.8051 €
5 pcs.
39.0082 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stop switch, 84-6240.0040, eao
Stop switch, Ø 22.3 mm, Ø 32 mm, mushroom-head, non illuminative, Grey, Plastic, opaque, round, 2 NC, Maintained, Flat ribbon cable 300 mm, IP65, IP66, IP67, according to DIN EN 60529, Twist to unlock, none.
Technical specifications
| Contact function | latching | |
| Resetting | rotary release | |
| Installation diameter | 22.3 mm | |
| Degree of protection (IP) | IP65/IP66/IP67 | |
| Type of mounting | panel mounting | |
| illuminated | No | |
| Latching switching function | 2 Form B (N/C) | |
| Collar shape of the front frame | round |
Download
Logistics
| Country of origin | CH |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
