84-5240.0040 | eao
Emergency stop, rotary release, mounting Ø 22.3 mm, unlit, 2 Form B (N/C), 84-5240.0040
Unit Price (€ / pc.)
41.9951 € *
Available: 5 pcs.
Total Price:
42.00 € *
Price list
Quantity
Price per unit*
1 pcs.
41.9951 €
3 pcs.
40.0554 €
5 pcs.
38.2942 €
*incl. VAT plus shipping costs
Subject to prior sale

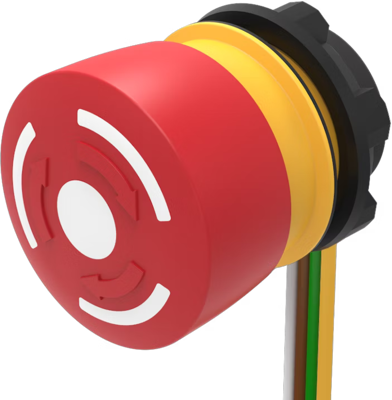

Emergency stop switch, 84-5240.0040, eao
Emergency stop switch, Ø 22.3 mm, Ø 32 mm, mushroom-head, non illuminative, Red-white, Plastic, according to UL 94 V0, opaque, round, 2 NC, Maintained, Flat ribbon cable 300 mm, IP65, IP66, IP67, according to DIN EN 60529, Twist to unlock.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP66/IP67 | |
| Contact function | latching | |
| illuminated | No | |
| Type of mounting | panel mounting | |
| Resetting | rotary release | |
| Latching switching function | 2 Form B (N/C) | |
| Installation diameter | 22.3 mm | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
